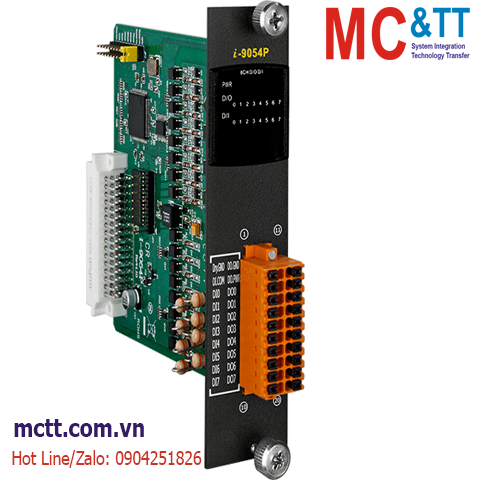

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 8 kênh DI + 8 kênh DO ICP DAS I-9054P CR
Feature
• 8-channel Digital Input
• 8-channel Open Collector Output
• Sink-type Digital Output
• Channel Status LED Indicators
• 3750 VDC Intra-module Isolation
Introduction
The I-9054P offers 8 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters and 8 digital output channels, each of which features Photocouple isolation and supports sink-type output using an open collector.
The I-9054P provides 16 LED indicators that can be used to monitor the DIO channel status. 4 kV ESD protection and 3750 VDC intramodule isolation are also provided to enhance noise immunity capabilities in industrial environments.
Application
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
|---|---|
| Channels | 8 |
| Type | Dry + Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +19 VDC ~ +30 VDC |
| OFF Voltage Level | Dry: Open Wet: +11 VDC Max. |
| Response Speed | OFF to ON: 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms (by Jumper select) or CPU parameter setting, Default Setting is Disable ON to OFF: 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms (by Jumper select) or CPU parameter setting, Default Setting is Disable |
| Low Pass Filter | Yes, Programmable |
| Effective Distance | 500 M Max. |
| Digital Output | |
|---|---|
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ +50 VDC |
| Load Current | 500 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.1 A |
| Short-circuit Protection | Yes |
| Power | |
|---|---|
| Consumption | 1 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 mm x 134 mm x 144 mm |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-9054P | 8-channel Isolated DI and 8-channel Isolated DO Module (RoHS) |
