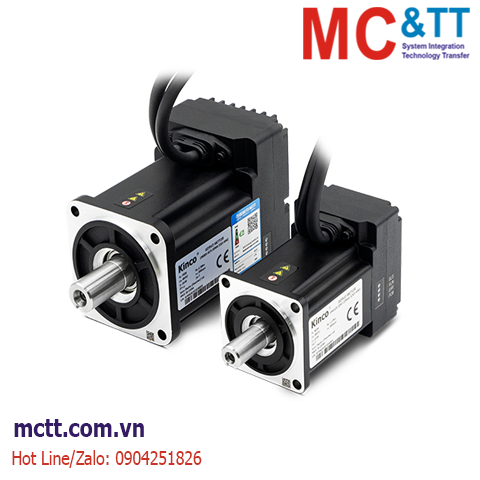

Động cơ Servo DC tích hợp Bộ điều khiển 750W, without brake Kinco iSMK80-075-DMAK-AA-000

Thương hiệu: Kinco | Tình trạng: Còn hàng

Liên hệ

DC Servo Driver integrates servo motor

Tính năng

Compact body, highly integrated motor, driver, encoder and brake in one;
Support 24~60 VDC wide voltage.
Supports CANopen, Modbus RTU, etc.
A variety of safety protection measures such as overvoltage protection, under pressure protection, short-circuit protection, motor overheating (IIT) protection, and driver overheating protection;
Can be equipped with a standard reducer, suitable for rotary jacking and other scenes

Thông số kỹ thuật

Model	Rated power Pn(W)	Rated torque Tn(Nm)	Rated current In(A)	Feedback	Rotor moment of inertia Jm (Kg•cm2 )
iSMK60-020-DMAK-AA-000	200	0.64	7	Singleturn communication type magnetoelectric encoder	0.17
iSMK60-020-DMBK-AA-000					0.176
iSMK60-040-DMAK-AA-000	400	1.27	12		0.31
iSMK60-040-DMBK-AA-000					0.314
iSMK80-075-DMAK-AA-000	750	2.39	23		0.85
iSMK80-075-DMBK-AA-000					0.91

Thông tin đặt hàng

Tài liệu

Low voltage servo_FD1X5&iSMK
