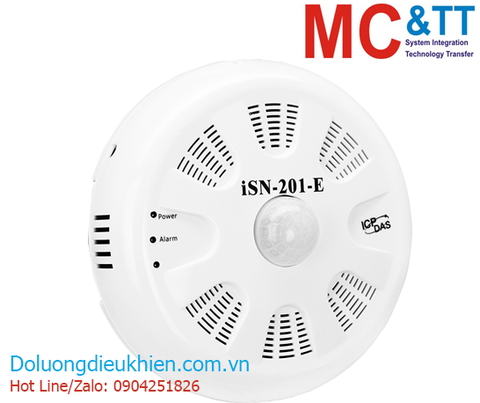

iSN-201-E CR: Cảm biến đo cường độ ánh sáng (LUX) + nhiệt độ + Độ ẩm Ethernet +RS-485 Modbus

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

iSN-201-E CR Illuminance, Temperature and Humidity Sensor Module (RS-485, Ethernet) (RoHS)

THÔNG TIN SẢN PHẨM

Features

Illuminance Measurement Range: 0 to 20,000 Lux
Temperature Measurement Range: -20 to +60°C
Humidity Measurement Range: 0 to 100% RH
Supports the DCON and Modbus RTU/TCP Protocols
Supports the MQTT Protocol for Ethernet Interface
Includes RS-485/Ethernet Communication Interfaces
Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
Supports Web Confi guration and Firmware Update via Ethernet
Compatible with IEEE802.11b/g/n standards (iSN-201-WF only)
Support infrastructure and limit-AP modes for wireless networks (iSN-201-WF only)
Ceiling Mounting

Introduction

The iSN-201 series modules can be used for measuring indoor illumination, temperature and humidity. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/ Bluetooth/ Wi-Fi models. The various models provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/ central control systems.

The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The white minimalist exterior design ensures that it easy to match with interior decoration.

Specifications

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal, ±8 kV Air for Random Point

LED Indicators
Status	Yes,1 as Power, 1 as Alarm Indicator 1 as Communication Indicator

Temperature Measurement
Fire Alarm	65°C (Programmable)
Range	-40 ~ +120°C
Resolution	0.1°C
Accuracy	Typical: ±0.5°C; refer to figure 2

Humidity Measurement
Accuracy	Typical: ±3% RH @ 20 ~ 80% RH; refer to figure 1
Range	0 ~ 100% RH
Resolution	0.1% RH

Illuminance Measurement
Range	0 ~ 20,000 Lux
Resolution	1 Lux
Accuracy	±5%

Relay Output
Channels	1
Type	Power Relay, Form C
Contact Rating	NO: 10 A @ 250 VAC NC: 6 A @ 250 VAC

COM Ports
Ports	1 x RS-485 1 x Ethernet/PoE
Protocol	DCON, Modbus RTU, Modbus TCP, MQTT

Power
Reverse Polarity Protection	Yes
Input Range	10 ~ 48 VDC, PoE
Consumption	2 W

Mechanical
Dimensions (mm)	Ø150 x 53 (Ø x H)
Installation	Ceiling/surface mounted
Ingress Protection Rating	IP20

Environmental
Operating Temperature	0 ~ +75 °C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering infromation

iSN-201-E CR

Illuminance, Temperature and Humidity Sensor Module (RS-485, Ethernet) (RoHS)
