Miễn phí vận chuyển với đơn hàng từ 10.000.000đCảm biến đo lực kéo và nén 0.5 - 2000 kN Lorenz K-11
K-11, Material Tester

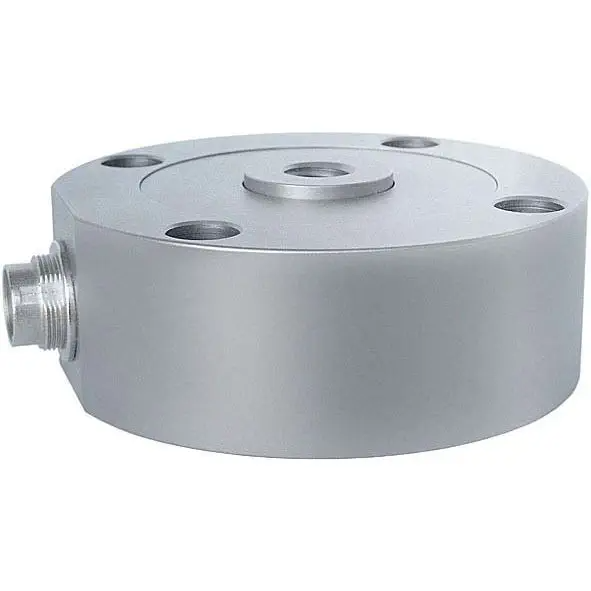

The K-11 Pancake Load Cell is designed for tension and compression applications. The unit has a small outer diameter and is capable of measuring both tension and compression forces. The load cell’s shear web design yields high performance and offers high resistance to extraneous forces such as bending, side loads, and torsion. With such a wide capacity range this model is well suited for both low capacity as well as high capacity applications.
Features:
K-11 - Specifications
| Type | Pancake |
| Application | Tension & Compression |
| Full Scale | 112 lbs |
| 220 lbs | |
| 450 lbs | |
| 1120 lbs | |
| 2200 lbs | |
| 4500 lbs | |
| 11200 lbs | |
| 22000 lbs | |
| 45000 lbs | |
| 112000 lbs | |
| 225000 lbs | |
| 450000 lbs | |
| Output | 2 mV/V |
| Precision | ±0.05 % FS |
| ±0.1 % FS | |
| ±0.2 % FS | |
| ±0.4 % FS | |
| ±0.5 % FS | |
| ±1.0 % FS | |
| Excitation | 2 V - 12 V DC |
| IP Rating | IP52 |
| IP67 | |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
Download
| Type: | K-11 |
|---|---|
| Measuring Range: | 0.5..2000 kN |
| Accuracy Class: | 0.05..1.0 |
| Range of Application: | E.g. for Material Testing Machines, Press-In Force Measurement, Roll Force Applications .. |
| Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 6-pin female cable connector and free soldered ends |
| PDF Datasheet: | 080817c_K-11_en.pdf |
| PDF Operation Manual: | Download |
| CAD Files: | DXF IGS; STP |
