Multi-Component Screw Testing Sensor M-1902, for screw testing: Thread friction torque, screw head friction torque and preload - Lorenz Messtechnik GmbH
Cảm biến đo Momen xoắn và lực 100 Nm / 100 Nm / 100 kN Lorenz M-1902

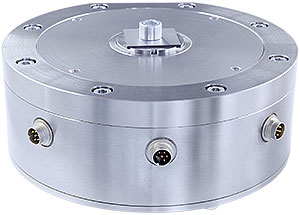

M-1902, Thread Friction Sensor
The M-1902 multi-component sensor has two reaction torque measurements and one load measurement.
Features:
M-1902 - Specifications
Type | Multi-Axis |
# of Axis | 3 (Fz, Mx, My) |
Application | Compression |
Full Scale | 22000 lbs |
Output | 0.5 mV/V |
Precision | ±0.2 % FS |
Excitation | 2 V - 12 V DC |
IP Rating | IP50 |
Min Temperature | 5 °C |
Max Temperature | 45 °C |
Download
Type: | M-1902 |
---|---|
Measuring Range: | 100 N·m / 100 N·m / 100 kN |
Accuracy Class: | 0.2 |
Range of Application: | Screw Testing: Thread Friction Torque, Screw Head Friction Torque and Preload |
Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 6-pin female cable connector and free soldered ends |
PDF Datasheet: | 080973_M-1902_en.pdf |
PDF Operation Manual: | - |
CAD Files: | DXF IGS |
