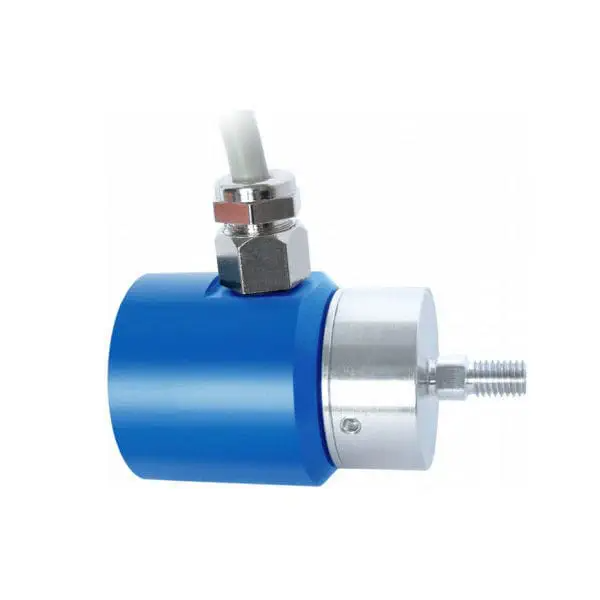

Multi-Component Sensor M-2416 (force & torque transducer) for force and non rotary (static) torque measurement produced & distributed by Lorenz Messtechnik GmbH
Cảm biến đo Momen xoắn và lực 0.1 Nm / 20 N, 0.5 Nm / 50 N Lorenz M-2416
M-2416, Multi-Component Sensor
The M-2416 multi-component sensor is capable of measuring reaction torque and load forces. The unit is well suited for applications such as optimization of the granulation of abrasives.
Features:
M-2416 - Specifications
Type | Multi-Axis |
# of Axis | 2 (Fx, Mx) |
Application | Tension & Compression |
Full Scale | 4.5 lbs |
11.2 lbs | |
Output | 0.5 mV/V |
Precision | ±0.2 % FS |
Excitation | 2 V - 8 V DC |
IP Rating | IP50 |
Min Temperature | 5 °C |
Max Temperature | 45 °C |
Download
Type: | M-2416 |
---|---|
Measuring Range: | 0.1 N·m / 20 N 0.5 N·m / 50 N |
Accuracy Class: | 0.2 (F); 0.2 (Mt) |
Range of Application: | E.g. the Optimization of the Granulation of Abrasives |
PDF Datasheet: | 080971_M-2416_en.pdf |
PDF Operation Manual: | - |
CAD Files: | DXF IGS |
