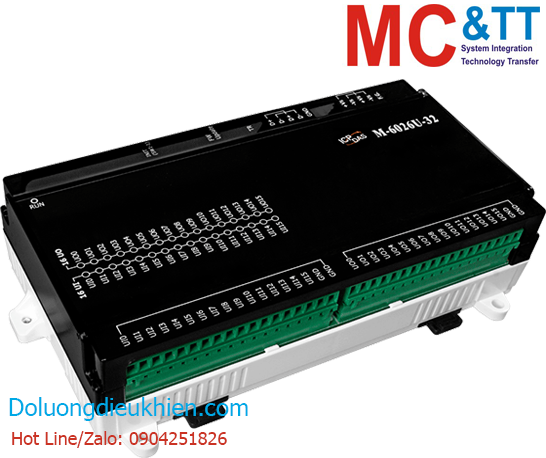

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule RS-485 Modbus RTU 16 kênh đầu vào tương tự (AI) + 16 kênh đầu ra tương tự (AO) ICP DAS M-6026U-32 CR
Tính năng
Giới thiệu
The M-6026U-32 of distributed I/O provides a wide variety of input, output, and smart control solutions, all of which are based on a single universal hardware platform. The M-6026U-32 combines inputs and outputs, saving your time and space when both are at a premium. Since M-6032U-32 feature both inputs and outputs on the same board, retailers can reduce the space requirement for I/O boards by as much as 50%! Traditional I/O board schemes required retail operators to mount separate input and output boards within an enclosure, increasing the time and cost to mount the boards. The M-6000 I/O boards are communications devices needed to connect to the facility management system to control refrigeration, HVAC and lighting systems.
Ứng dụng
Thông số kỹ thuật
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (2.3 seconds), Communication (Programmable) |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 16, universal for AI and DI |
| Type | Voltage Current |
| Range | 0 ~ 2.5V, 0 ~ 5 V, 0 ~ 10 V, 0 to 20 mA, 4 to 20 mA, Pt1000 |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Overvoltage Protection | 100 VDC |
| Analog Output | |
|---|---|
| Channels | 16 |
| Type | Voltage Current |
| Range | 0 to 20 mA, 4 to 20 mA, 0 to 10 V |
| Resolution | 12-bit |
| Accuracy | ±0.2% of FSR |
| Open Wire Detection | Yes, Only 4 to 20 mA |
| Voltage Output Capability | 10 V@ 20mA |
| Digital Input | |
|---|---|
| Channels | 16, universal for AI and DI |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Fuse Protection | Yes |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 to 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus RTU |
| Power | |
|---|---|
| Consumption | 14 W Max. |
| Powered from Terminal Block | 24 VAC or 24 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 237 x 134 x 59 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Thông tin mua hàng
| M-6026U-32 CR | 16-channel Universal Input and 16-channel Universal Output Module using the Modbus Protocols (RoHS) |
