Module RS-485 Modbus RTU 32 kênh đầu ra xung PWM ICP DAS M-6088-32 CR
Features
- 32-channel PWM Output
- Burst Mode and Continuous Mode for PWM Output
- Individual and Synchronous PWM Output
- Supports DCON and Modbus RTU Protocols
- Embedded Dual Watchdog
Introduction

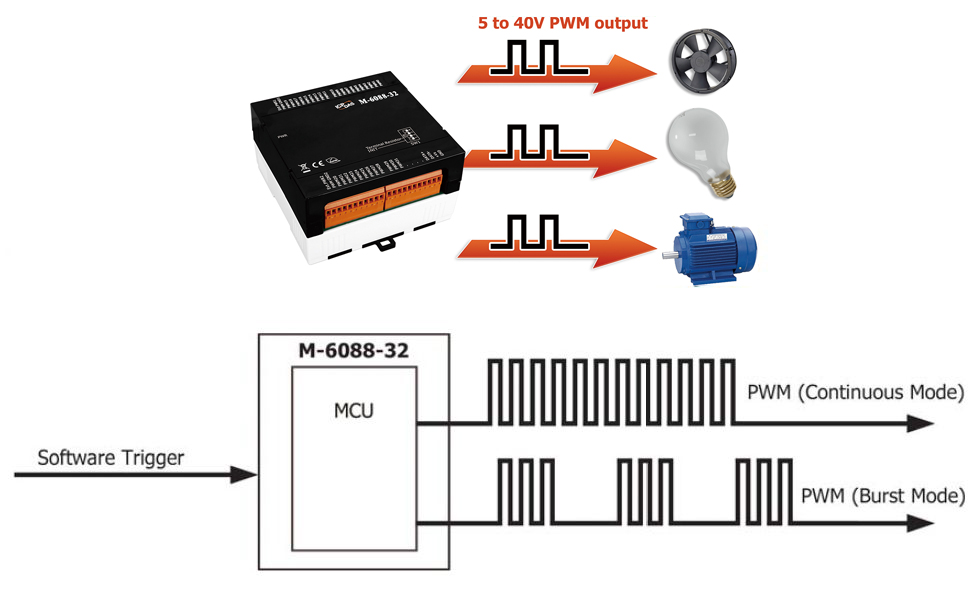

The M-6088-32 provides 32-channel PWM (Pulse Width Modulation) Output, and can be used to develop powerful and cost-effective analog control systems. PWM is a powerful technique for controlling analog circuits that uses the Digital Output to generate a waveform with a variable duty cycle and frequency which can then be used to control an analog circuit in applications such as controlling the position or speed of motors, the brightness of lamps, or the speed of fans, etc. Either burst mode or continuous mode can be used for the PWM output depending on the application. When required, communication with the M-6088-32 can be programmed based on the Modbus RTU and the DCON protocol, with the added benefit that different addresses can be configured via hardware to allow for Modbus RTU communication.
Applications
- Heating system in buildings
- Ventilation system
- Controlling Fan Speed
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV to Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| PWM |
| Channels |
32 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+5 ~ +40 VDC |
| Load Current |
200 mA/channel |
| Frequency |
50 Hz |
| Duty Cycle |
0.1 to 99.9 % |
| Mode |
Burst, Continuous |
| Burst Count |
1 to 65535 |
| Power-on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 to 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Bias Resistor |
No. Usually supplied by the RS-485 Master also add an optional tM-SG4 or SG-785. |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +48 VDC |
| Consumption |
1.0 W Max. |
| Mechanical |
| Dimensions (mm) |
116 x 120 x 64 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-6088-32 CR |
32-channel PWM Output Module using the DCON and Modbus Protocols (RoHS) |
