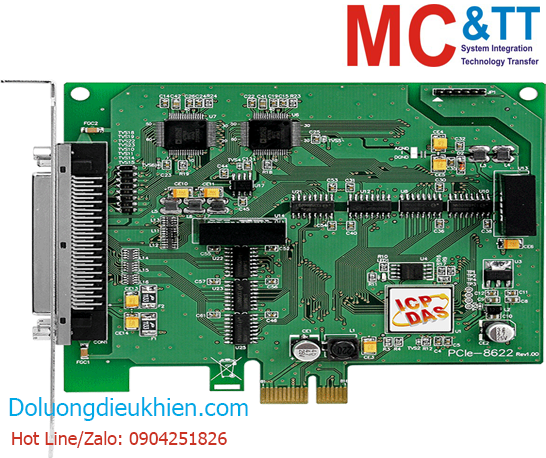

Card PCI Express 16 kênh đầu vào tương tự 16-bit tốc độ 200 kS/s + 2 kênh đầu ra tương tự 16-bit + 12 kênh I/O Digital ICP DAS PCIe-8622 CR
Tính năng
- PCI Express x1 Interface, Full-profile
- 12-channel Isolated Digital Input
- 12-channel Isolated Digital Output
- 2-channel 16-bit Analog Output
- 16 Single-ended Analog Input channels
- Synchronous Sample and Hold
- Built-in MagicScan Controller
- Analog Input Range: ±10 V, ±5 V
- 16-bit, 200 kS/s Sampling Rate for each channel
- Hardware FIFO for Analog Input with a total of 2048 Samples
Giới thiệu
The PCIe-8622 is a bus-type, isolated high-speed AD multifunction board with 16-bit DA and isolated DI/O. The simultaneously sampled AD offers a mix of up to 16 single-ended, 16-bit Analog Input channels with a 2 k Sample hardware FIFO and 2500 VDC bus-typed isolation protection. All channels feature a programmable input range of ±10 V or ±5 V with a sampling rate up to 200 kS/s per channel.
The PCIe-8622 supports the PCI Express bus and provides 12 isolated Digital Input channels, 12 isolated Digital Output channels and 2 Analog Output channels at 16-bit resolution. The board has a single high-density connector that reduces the amount of space required for installation.
Accessories
Thông số kỹ thuật
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
SCSI II 68-pin x 1 |
| Analog Input |
| Channels |
16 single-ended (Simultaneously) |
| Range |
Gain: 1, 2 Bipolar Range: ±10 V, ±5 V |
| Resolution |
16-bit |
| Accuracy |
0.05 % of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate |
200 kS/s |
| Input Impedance |
10,000 MΩ/4 pF |
| Overvoltage Protection |
Continuous ±35 Vp-p |
| FIFO Size |
2048 samples |
| Trigger Mode |
Software, Pacer, External |
| Isolation |
2500 VDC (Bus-type) |
| Data Transfer |
Polling, Interrupt, DMA |
| Analog Output |
| Channels |
2 |
| Range |
±5 V, ±10 V |
| Resolution |
16-bit |
| Accuracy |
±10 LSB |
| Voltage Output Capability |
±5 mA |
| Slew Rate |
2.8 V/µs |
| Operation Mode |
Static update |
| Digital Input |
| Channels |
12 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Data Transfer |
Polling |
| Isolation |
2500 VDC |
| Digital Output |
| Channels |
12 |
| Type |
5 V/CMOS |
| Operation Mode |
Static Update |
| Load Current |
Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V |
| Response Speed |
1.0 MHz (Typical) |
| Isolation |
2500 VDC |
| DO Readback |
Yes |
| Timer/Counter/Frequency |
| Channels |
2 |
| PC Bus |
| Type |
PCI Express x 1 |
| Data Bus |
32-bit |
| Power |
| Consumption |
600 mA @ +3.3 V
250 mA @ +12 V |
| Mechanical |
| Dimensions (mm) |
120 x 125 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
