PCI Express, 110 kS/s, 32-ch, 12-bit Multi-function Board

THÔNG TIN SẢN PHẨM

Features

Supports PCI Express x1
Card ID Function (SMD Switch)
12-bit AD Converter, 100kHz Sampling Rate
32 single-ended/ 16 differential Analog Inputs
Programmable low gain: 1, 2, 4, 8
16 channels Digital Input
16 channels Digital Output
Internal/external trigger
Pull-high/Pull-low Jumpers for DI Ports

Introduction

The PEX-1002L supports PCI Express bus. These cards are a family of A/D board and features low-gain 110 kS/s analog input. It provides 12-bit 32 single-ended or 16 differential analog inputs, 16 digital input and 16 digital output channels.

The PEX-1002L also adds a Card ID switch on-board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-1002L cards in one computer. The PEX-1002L provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

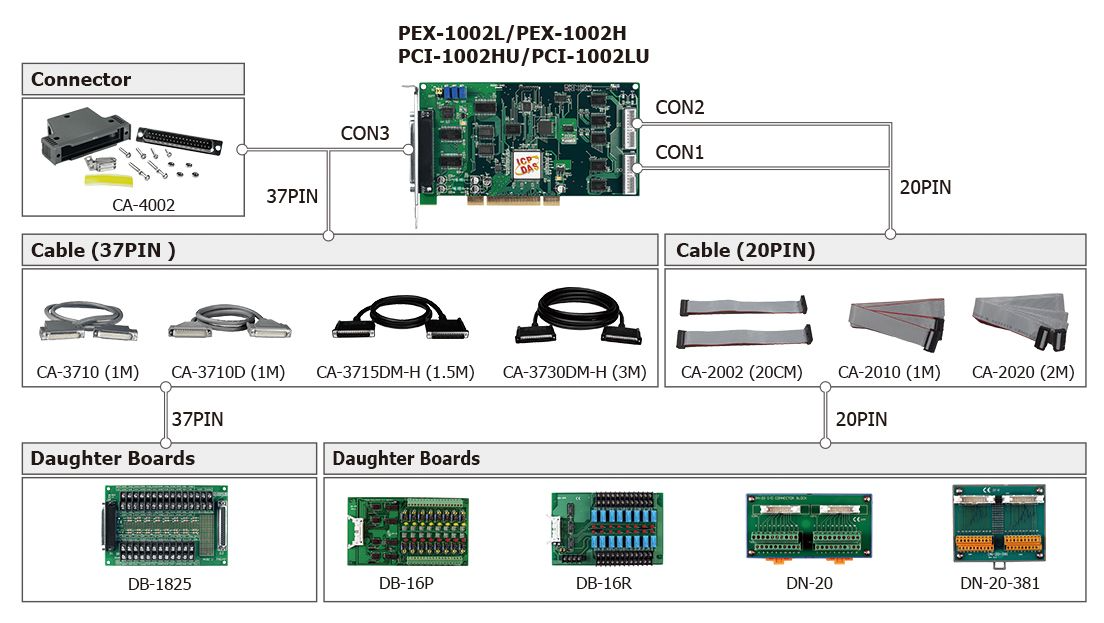

Accessories

Specification

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 20-pin box header x 2

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V
Resolution	12-bit
Accuracy	0.01% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	110 kS/s. Max.
Input Impedance	10 MΩ/6 Pf
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling, Interrupt

Digital Input
Channels	16
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	500 KHz
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Max. Load Current	Sink: 2.4 mA Source: 0.8 mA
Response Speed	500 KHz (Typical)

Timer/Counter/Frequency
Channels	3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type	5 V/TTL
Resolution	16-bit
Input Frequency	10 MHz Max.
Reference Clock	Internal: 4 MHz

PC Bus
Type	PCI Express x 1
Data Bus	16-bit

Power
Consumption	900 mA @ +3.3 V 350 mA @ +12 V

Mechanical
Dimensions (mm)	110 x 167 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Ordering information

PEX-1002L CR

PCI Express, 32-ch, 12-bit, 110 kS/s Multi-function Board(RoHS)
Includes one CA-4002 D-Sub connector
