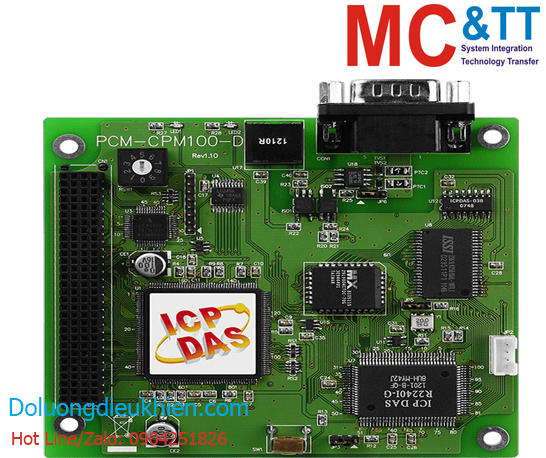

Card PCI-104 1 cổng CANopen Master ICP DAS PCM-CPM100-D CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

1 Port Isolated Protection CAN Communication PCI-104 Module

THÔNG TIN SẢN PHẨM

Features

• PCI104 compliant
• 9-pin D-sub connector
• Compatible with CiA-301 v4.02
• Fully compatible with ISO 11898-2 standard
• Support CAN bard from 10K to 1M bps
• 2500 Vrms photo couple isolation on the CAN bus
• Built-in jumper to select 120 ohm terminal resister
• 1KV galvanic isolation
• Direct memory mapping to the CAN controller
• Provide VB, VC++, Delphi, BC++ demos
• Driver support Windows 98/ME/NT/2K/XP/WinCE and Linux

Introduction

PCM-CPM100-D can represent a CANopen solution on a high quality PCI104 hardware in industrial environment compliant with CANopen CiA-301 version 4.02 specification. It has one CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CANopen applications.

Besides, PCM-CPM100-D uses the CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI104 slot and supported truly "Plug & play"

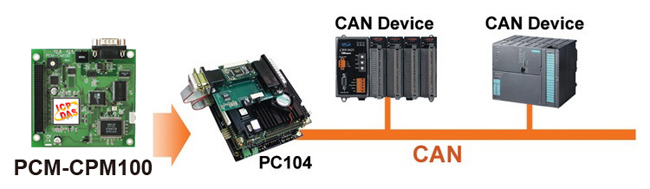

Application

CANopen communication application
Control System
Building Automation
Factory Automation Distributed data acquisition

Specification

Download

Data sheet

Documents

Ordering information

PCM-CPM100-D CR

1-Port Isolated Protection CAN Communication PCI-104 Module (9-pin D-sub Connector) (RoHS)
