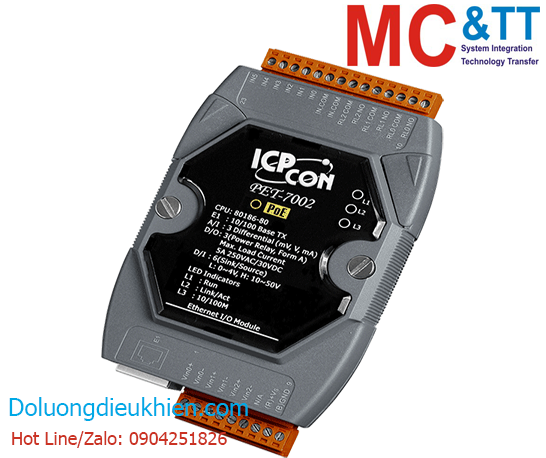

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule PoE Ethernet Modbus TCP 3 kênh AI+6 kênh DI+3 kênh Relay ICP DAS PET-7002 CR
Features
Introduction
The PET-7002 is a multi-function module with 3-channel analog inputs, 6-channel digital inputs and 3-channel relay outputs. It provides various programmable analog inputs (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper. The PET-7002 is fully RoHScompliant and has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (0.8 second), Communication (Programmable) |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power, 2 x Ethernet, 1 x PoE |
| Software | |
|---|---|
| Built-in Web Server | Yes |
| Analog Input | |
|---|---|
| Channels | 3 (Differential) |
| Type | Voltage Current |
| Range | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V +0 mA ~ +20 mA, ±20 mA, 4 ~ 20 mA (jumper selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 Samples/Second (Total) Fast Mode: 50 Samples/Second (Total) |
| Input Impedance | Voltage: 2 MΩ Current: 125 Ω |
| Common Mode Rejection | 86 dB Min. |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | Yes, 50 mA at 110 VDC/VAC Max. |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Digital Input/Counter | |
|---|---|
| Channels | 6 |
| Sink/Source (NPN/PNP) | Sink/Source |
| Contact | Wet Contact |
| ON Voltage Level | +10 VDC ~ +50 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Max. Counts | 4,294,967,285 (32 bits) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 KΩ, 0.5W |
| Overvoltage Protection | +70 VDC |
| Relay Output | |
|---|---|
| Channels | 3 |
| Type | Power Relay, Form A (SPST N.O.) |
| Operate Time | 6 ms (Typical) |
| Release Time | 3 ms (Typical) |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |
| PoE | Yes |
| Security | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 3.4 W |
| Powered from PoE | Yes, IEEE 802.3af, Class1 |
| Powered from Terminal Block | 12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 mm x 123 mm x 35 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering information
| PET-7002 CR | PoE Ethernet I/O Module with 3-ch AI, 6-ch DI and 3-ch Relay (RoHS) |
