PoE Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO

THÔNG TIN SẢN PHẨM

Features

Built-in Web Server
Web HMI
Support for both Modbus TCP and Modbus UDP Protocols
Communication Security
Dual Watchdog
Wide Operating Temperature Range: -25 ~ +75°C
I/O Pair Connection
Built-in I/O
- Thermocouple Input: 10 Channels
- DO: 6 Channels

Introduction

The “Z” version is another milestone in the development of the thermocouple series and is a testament to the excellence of ICP DAS products. The PET-7018Z is specifically designed for extremely accurate thermocouple measurement and features automatic coldjunction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported. Another feature is that its ten input channels can be individually configured for different kinds of analog input. Open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six/five digital output channels can be set as alarm outputs with short-circuit protection and overload protection.

Specification

CPU Module
Watchdog Timer	Yes, Module (0.8 second), Communication (Programmable)

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power, 2 x Ethernet, 1 x PoE

Software
Built-in Web Server	Yes

Analog Input
Channels	10 (Differential)
Type	Voltage Current Thermocouple
Temperature Output Consistency	Yes
Stable Temperature Output in the Field	Yes
Range	±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Requires Optional External 125Ω Resistor) Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710)
Resolution	16-bit
Accuracy	±0.1% of FSR or better
Sampling Rate	10 Samples/Second (Total)
Input Impedance	>300 kΩ
Common Mode Rejection	150 dB Min.
Normal Mode Rejection	100 dB
Overvoltage Protection	240 Vrms
Individual Channel Configuration	Yes
Open Wire Detection	Yes
Zero Drift	±0.5 μV/°C
Span Drift	±25 ppm/°C
Isolation	±400 VDC, Virtual Channel to Channel Isolation

Digital Output
Channels	6
Type	Isolated Open Collector
Sink/Source (NPN/PNP)	Sink
Load Voltage	5 VDC ~ 50 VDC
Max. Load Current	700 mA/Channel
Overvoltage Protection	60 VDC
Overload Protection	1.4 A
Short-Circuit Protection	Yes
Power on Value	Yes, Programmable
Safe Value	Yes, Programmable

Ethernet
Ports	1 x RJ-45, 10/100 Base-TX
PoE	Yes
Security	ID, Password and IP Filter
Protocol	Modbus TCP, Modbus UDP

Power
Reverse Polarity Protection	Yes
Consumption	3.0 W
Powered from PoE	Yes, IEEE 802.3af, Class1
Powered from Terminal Block	12 ~ 48 VDC

Mechanical
Dimensions (mm)	72 mm x 123 mm x 35 mm (W x L x H)
Installation	DIN-Rail or Wall mounting

Environmental
Operating Temperature	-25 ~ +75°C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

PET-7018Z/S2 CR

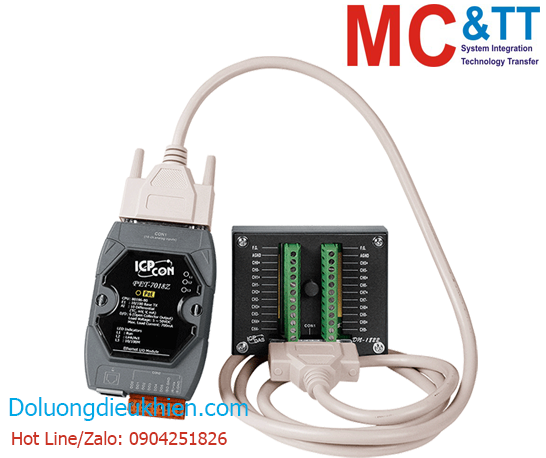

PoE Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1822 Daughter Board and a 1.8 m Cable (RoHS)
