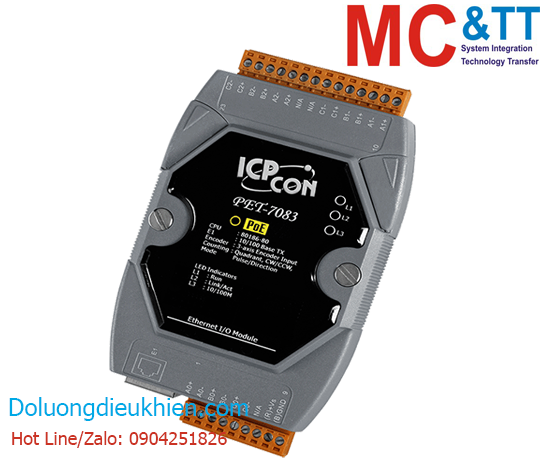

PoE Ethernet I/O Module with 3-ch Encoder/Counter Inputs

THÔNG TIN SẢN PHẨM

Features

Built-in Web Server
Web HMI
Support for both Modbus TCP and Modbus UDP Protocols
Communication Security
Dual Watchdog
Wide Operating Temperature Range: -25 ~ +75°C
Built-in I/O
- 3-Axis 32-bit encoder/counter inputs
- 1 MHz max. for Quadrant mode
- 4 MHz max. for CW/CCW, Pulse/Direction mode
- Count Value Retention for 10 years

Introduction

The PET-7083 is a 3-axis high speed encoder/counter module. Its each axis can be individually configured for Quadrant, Pulse/Direction or CW/CCW counting modes. The maximum input rate for Quadrant counting mode is 1 MHz, and for Pulse/Direction, CW/CCW counting modes is 4 MHz. The encoder/counter module is equipped a FRAM to retain the counter value after it is powered off. FRAM is a nonvolatile memory that can hold written data even after it is powered off. The data retention can be 10 years. And the feature can be configured as enabled or disabled.

Specification

CPU Module
Watchdog Timer	Yes, Module (0.8 second), Communication (Programmable)

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power, 2 x Ethernet, 1 x PoE

Software
Built-in Web Server	Yes

Counter/Frequency/Encoder Input
Channels	3-axis
ON Voltage Level	5 V: +3.5 ~ +5 VDC 12 V with 1 kΩ External Resistor: +5 ~ +12 VDC 24 V with 2 kΩ External Resistor: +7 ~ +24 VDC
OFF Voltage Level	+2 VDC Max.
Bits	32-bit (4,294,967,295)
Individual Channel Configuration	Yes
Counter Mode	Quadrant CW/CCW Pulse/Direction
Max. Speed	Quadrant mode: 1 MHz CW/CCW mode: 4 MHz Pulse/Direction mode: 4 MHz
Count Value Retention	Yes

Ethernet
Ports	1 x RJ-45, 10/100 Base-TX
PoE	Yes
Security	ID, Password and IP Filter
Protocol	Modbus/TCP, Modbus/UDP

Power
Reverse Polarity Protection	Yes
Consumption	2.7 W
Powered from PoE	Yes, IEEE 802.3af, Class1
Powered from Terminal Block	12 ~ 48 VDC

Mechanical
Dimensions (mm)	72 mm x 123 mm x 35 mm (W x L x H)
Installation	DIN-Rail or Wall mounting

Environmental
Operating Temperature	-25 ~ +75°C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, Non-condensing
