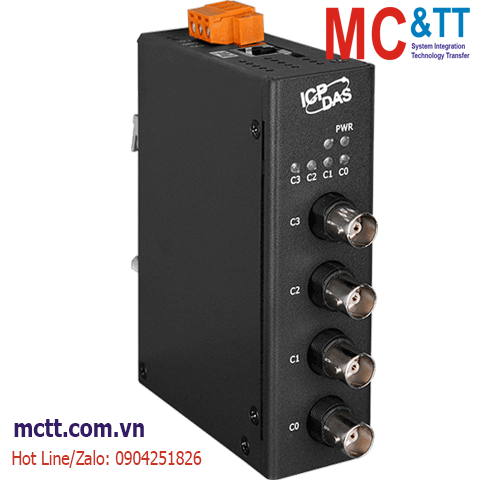

PoE Ethernet High Speed Data Acquisition Module, 4-ch Accelerometer (IEPE) Inputs

THÔNG TIN SẢN PHẨM

Features

4 differential IEPE input，Excitation Current 4 mA
24-bit ADC
Supports Real Sample and Hold
Sample Rate up to 128 kS/s(One Channel)
Continuous and N Data Sample Data Transmission Mode
A/D Trigger Mode
1. Software Trigger
2. Analog Threshold Trigger
Software Support
1. Supported Operating Systems
  Windows 7/8/10 and Linux
2. Software Compatibility
  1. Microsoft VC, C#, VB.NET SDK API and Demo
  2. NI LabVIEW Toolkit and Demo for Windows
  3. C/C++ library and Demo for Linux
Built-In 10/100BASE-T Auto-negotiating, Auto MDI/MDI-X Ethernet Port
Option for External Power Supply or POE Supply

Introduction

PET-AR400 is a high speed data acquisition device with a built-in Ethernet communication port for data transfer over a network, and includes 4 high-speed 24-bit differential IEPE input channels (128 kHz sample and hold @ one channels).
PET-7H24M also provides 4 kV ESD protection as well as 2500 VDC intra-module isolation. In addition, the 24-bit ADC includes built-in filtering to adjust the appropriate sampling rate and filter out modulator and signal noise. The PET-7H24M is not only suitable for a wide range of mobile/portable measurement applications, but also for precision signal measurement.
The software trigger mode can command the trigger to perform continuous or N data A/D acquisition when needed, on the other hand, when the trigger mode is set to Analog Threshold Trigger mode, the A/D will start collecting N data when the analog input value is above or below a certain voltage.

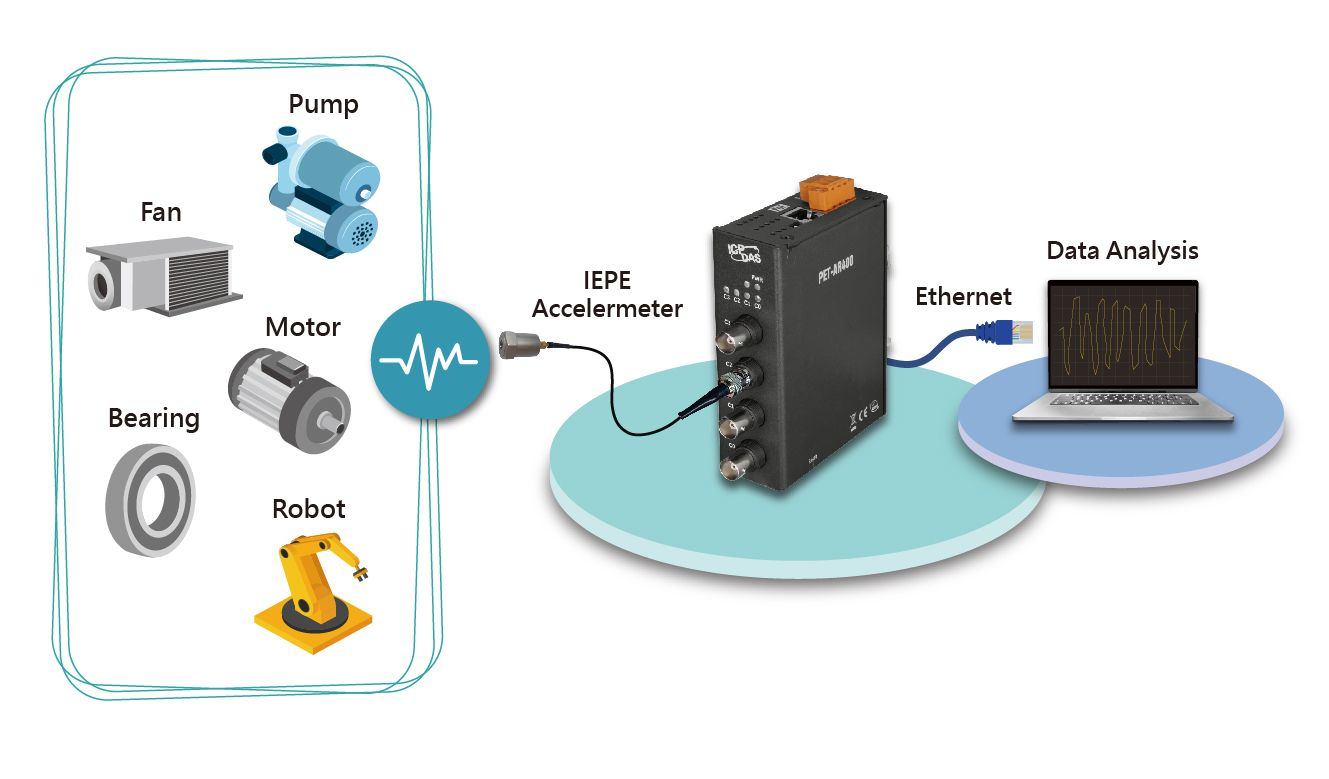

Applications

Vibration measurement and analysis application
Machine condition monitoring
Predictive maintenance

Specifications

Software
OS	Windows 7/8/10 and Linux
Protocol	TCP Streaming (Access data by SDK library) Modbus TCP
Utility	Configuration, graphically display and data logging
SDK	Windows 。Microsoft VC, C#, VB.NET SDK API and Demo 。Python Demo 。NI LabVIEW Toolkit and Demo Linux 。C/C++ library and Demo 。.NET library and Demo 。Python Demo

EMS Protection
EFT (IEC 61000-4-4)	1 kV for power
ESD (IEC 61000-4-2)	4 kV contact for each terminal, 8 kV air for random point

LED Indicators
Status	1 x Power, 4 x Connection

Analog Input
Channels	4 Differential (Simultaneously)
Range	±10 V
Resolution	24-bit
Accuracy	±0.02 % FSR @ ±10 V
Sampling Rate	128 kS/s (Each Channel)
Input Impedance	Voltage: 2 MΩ
FIFO Size	1 k bytes, 256 Samples
Trigger Mode	Software, Analog Threshold Trigger

Ethernet
Ports	1 x RJ-45, 10/100 Base-TX
PoE	IEEE 802.3af, Class 2
Security	ID, Password and IP Filter
Protocol	Modbus TCP Slave, Private TCP Raw Data

Power
Reverse Polarity Protection	Yes
Consumption	4.5 W
Powered from Terminal Block	+12 ~ +48 VDC

Mechanical
Casing	Metal
Dimensions (mm)	33 x 120 x 108 (W x L x H)
Installation	DIN-Rail, Wall mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PET-AR400 CR

PoE Ethernet High Speed Data Acquisition Module, 4-ch Accelerometer (IEPE) Inputs (RoHS)
