Card PCI Express 64 kênh vào/ra số DIO + 6 kênh Timer/Counter/Frequency ICP DAS PEX-D64 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PCI Express, 64-ch Digital I/O Board with Timer/Counter

THÔNG TIN SẢN PHẨM

Features

Supports PCI Express x1
64 channels of digital I/O
One 32-bit programmable internal timer
One 16-bit event counter
Card ID Function(SMD Switch)
One 16-bit counter and One 32-bit counter with 4 MHz time base
3 independent programmable 16-bit down counter
Interrupt trigger by : Even/Timer trigger

Introduction

The PEX-D24 supports PCI Express bus. These cards provide 32-ch digital input and 32-ch digital output that consist of two 16-bit input ports and two 16-bit output ports. The PEX-D64 offer 6-ch counter/timer with four-clock sources, 2 MHz, 1 MHz, 500 kHz and 250 kHz. The user can use the clock source from the soldering pad. 3 of the 6-ch timer/ counter are for general purposes such as frequency measurement, event counting and pulse generation; the other 3 channels are for interrupt function.

The PEX-D64 has a Card ID switch with which users can recognize the board by the ID via software when using two or more PEX-D64 cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

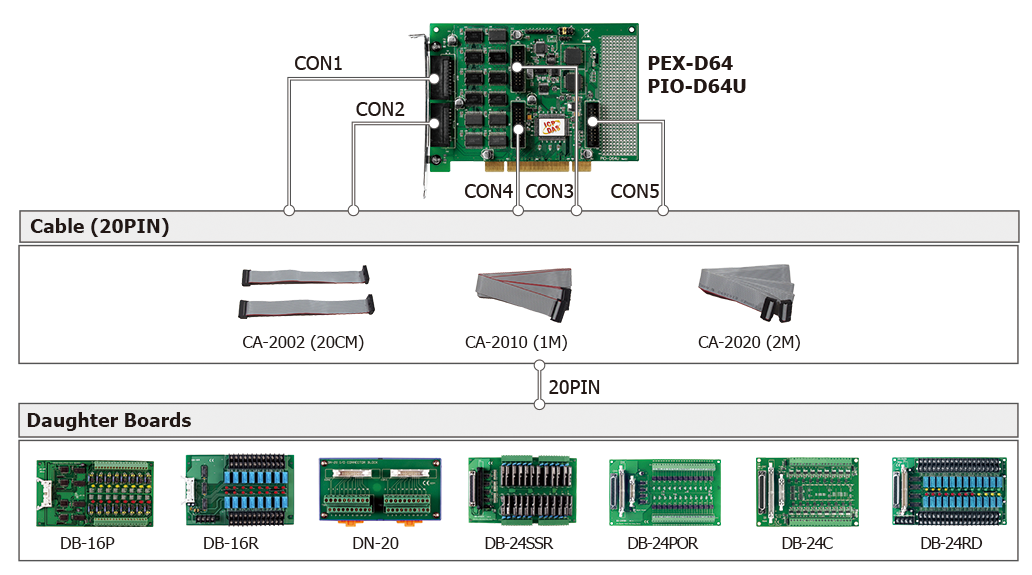

Accessories

Specification

Hardware
Card ID	Yes (4-bit)
Connector	20-pin box header x 5

Digital Input
Channels	32
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	500 kHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	32
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.4 V max. Logic 1: 2.4 V min.
Max. Load Current	Sink: 24 mA@ 0.8 V Source: 15 mA @ 2.0 V
Response Speed	500 kHz (Typical)

Timer/Counter/Frequency
Channels	6 (Independent x 3/EVTIRQ x 1/TMRIRQ x 1/EXTIRQ x 1)
Type	5 V/TTL
Resolution	16-bit
Reference Clock	Internal: 4 MHz

PC Bus
Type	PCI Express x 1
Data Bus	8-bit

Power
Consumption	200 mA @ +3.3 V 180 mA @ +12 V

Mechanical
Dimensions (mm)	112 x 156 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Ordering information

PEX-D64 CR

PCI Express, 64-channel DIO Board with Timer/Counter (RoHS)

Download

Data Sheet
