Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule Profinet 16 kênh đầu vào số DI ICP DAS PFN-2053 CR
Features
• Protocol: PROFINET IO Device
• PROFINET Conformance Class B and RT Class 1
• Cyclic Time: 1ms (min)
• Generic GSDML File Provided (Version 2.25)
• 4 kV Contact ESD protection for any terminal
• Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)
Introduction

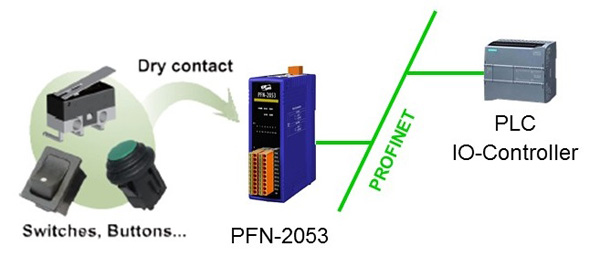

The PFN-2053 is specially designed for PROFINET IO device. It has 16-channel dry contact non-isolated digital inputs and, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
Specifications
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
|---|---|
| Status | PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Digital Input | |
|---|---|
| Channels | 16, Dry Contact: Source |
| Dry Contact, ON Voltage Level | Close to GND |
| Dry Contact, OFF Voltage Level | Open |
| Ethernet | |
|---|---|
| Service | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET | |
|---|---|
| Conformance Classes | Class B |
| Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | 1 ms (min) |
| Protocol | PROFINET IO Device |
| Power | |
|---|---|
| Consumption | 4 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 107 x 126 (W x L x H) |
| Installation | DIN-Rail |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering information
| PFN-2053 CR | PROFINET I/O Module (Dry contact Non-Isolated 16-ch DI) (RoHS) |
