Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule Profinet 8 kênh đầu vào số DI + 8 kênh đầu ra số DO ICP DAS PFN-2055 CR
Features
• Protocol: PROFINET IO Device
• PROFINET Conformance Class B and RT Class 1
• Cyclic Time: 1ms (min)
• Generic GSDML File Provided (Version 2.25)
• Do load voltage: +3.5 ~ +50 VDC
• Do load current: 700 mA/Channel (max.)
• Provide short-circuit protection on DO channels
• DI ON/OFF voltage level: +10 ~ +50 VDC / +4VDC max.
• 4 kV Contact ESD protection for any terminal
• Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)
Introduction

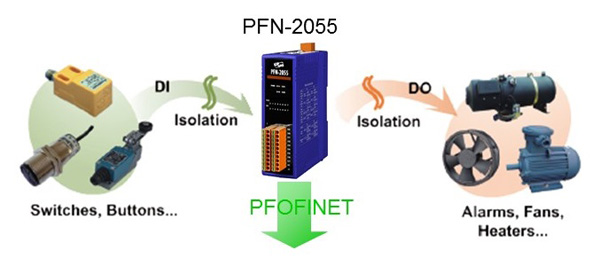

The PFN-2055 is specially designed for PROFINET IO device. It has 8-channel isolated digital inputs and 8-channel isolated digital outputs, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
Specifications
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
|---|---|
| Status | PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Digital Input | |
|---|---|
| Channels | 8, Dry Contact: Source, Wet Contact: Sink or Source |
| Wet Contact, ON Voltage Level | +10 VDC to +50 VDC |
| Wet Contact, OFF Voltage Level | +4 VDC max. |
| Dry Contact, ON Voltage Level | Close to GND |
| Dry Contact, OFF Voltage Level | Open |
| Digital Output | |
|---|---|
| Channels | 8, Sink, Open Collector |
| Load Voltage | +3.5 ~ +50 VDC |
| Max. Load Current | 700 mA/Channel |
| Ethernet | |
|---|---|
| Service | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET | |
|---|---|
| Conformance Classes | Class B |
| Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | 1 ms (min) |
| Protocol | PROFINET IO Device |
| Power | |
|---|---|
| Consumption | 4.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 107 x 126 (W x L x H) |
| Installation | DIN-Rail |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering information
| PFN-2055 CR | PROFINET I/O Module (Isolated 8-ch DI & 8-ch DO) (RoHS) |
