1 Port Intelligent DeviceNet Master Universal PCI Board

THÔNG TIN SẢN PHẨM

Features

Programmable Master MAC ID
Programmable transfer-rate 125 kbps, 250 kbps, 500 kbps
Each port support maximum nodes up to 64
Support UCMM and Group 2 Only Server functions
The maximum Fragment number is (Input/Output) up to 64
Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
Support Auto-Scan slave device function
Support on-line adding and removing devices
Support boot-up auto communicating with slave devices
Support Auto-Reconnect when the connection is broken

Introduction

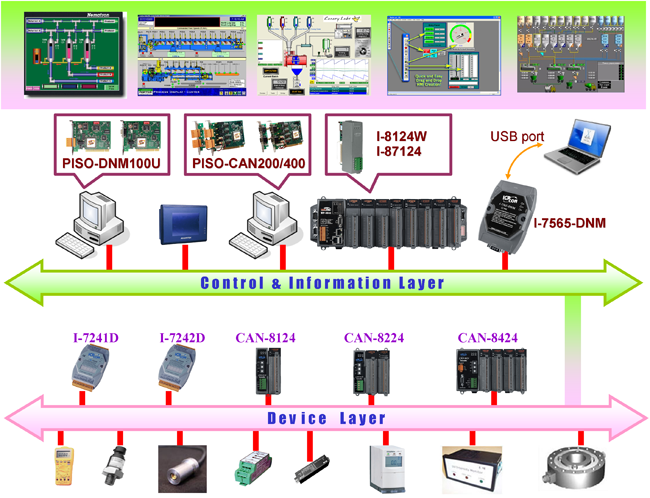

PISO-DNM100U can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a "Predefined Master-Slave connection Set". PISO-DNM100 supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications.

Besides, PISO-DNM100U uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example Windows system. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, PISO-DNM100U is developed for this purpose.

Specification

Software
Driver	Windows XP/7/8/10 (32-bit/64-bit OS)
Library	VB 6.0, VC++ 6.0, BCB 6.0, Visual Studio .NET

LED Indicators
Status	Green LED, Red LED

PC Bus
Type	Universal PCI supports both 5 V and 3.3 V PCI bus
Board No.	By DIP switch

DeviceNet
Controller	NXP SJA1000T with 16 MHz clock Microprocessor inside with 80186 80MHz
Transceiver	NXP 82C250
Ports	1
Baud Rate	125 k, 250 k, 500 k
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Jumper for 120 Ω terminal resistor
Porotocol	DeviceNet Volumn I ver2.0, Volumn II ver2.0
CAN Specification	ISO-11898-2, CAN 2.0A and CAN 2.0B

Power
Consumption	300 mA @ 5 V

Mechanical
Dimensions (mm)	138 x 22 x 105 (W x L x H)

Environmental
Operating Temperature	0 ~ +60 ℃
Storage Temperature	-20 ~ +70 ℃
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

PISO-DNM100U-T CR

1 Port Intelligent DeviceNet Master Universal PCI Board (5-pin Screw Terminal Connector) (RoHS)
