Bộ chuyển đổi Profibus sang Quang (Dual Fiber, Multi-Mode, ST, 1.4KM, 850 nm) ICP DAS PROFI-2541 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

PROFIBUS to Multi-mode Fiber Converter

Gọi +84 904251826 để được trợ giúp

Bộ chuyển đổi Profibus sang Quang (Dual Fiber, Multi-Mode, ST, 1.4KM, 850 nm) ICP DAS PROFI-2541 CR

Features

  • Support for PROFIBUS DP protocol
  • Detect transmission rate automatically(Max. 3Mbps)
  • Transparency on both side
  • Up to 32 stations per segment on PROFIBUS side
  • Fiber Wave Length: 850 nm
  • Network Isolation Protection
  • 3000VDC isolation protection on PROFIBUS side
  • 4KV ESD Protection (contact for any terminal)

Introduction

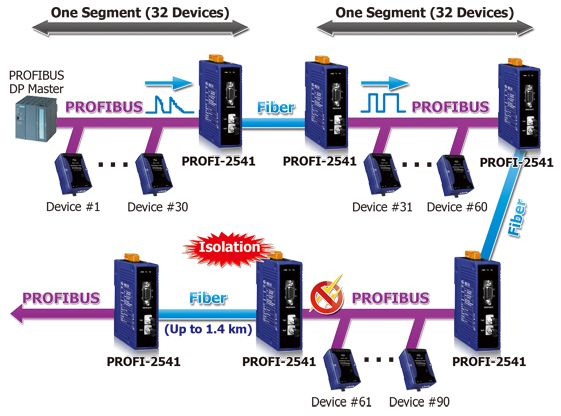

Fiber optic transmission medium is a good material to protect data transmission from EMI/RFI interference and has been used in harsh environment extensively. On the other hand, PROFIBUS is famous in industrial application. In order to solve the problem between different transmission medium, PROFI-2541 is specially designed for converting PROFIBUS signal to fiber optic cables. The fiber length between two PROFI-2541s can be up to 1.4km (4593ft). PROFI-2541 is the economic solution for applications which require protecting the data transmission from electrical exposure, surges, lightning or chemical corrosion.

Applications

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…

Specifications

LED Indicators
Status PWR LED, TxD LED, RxD LED
Fiber
Fiber Cable 62.5 / 125 μm
Wavelength 850 nm
PROFIBUS
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Power
Consumption 1 W
Mechanical
Dimensions (mm) 33.0 x 126.8 x 104.5 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +85 ℃
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PROFI-2541  PROFIBUS DP to Multi-mode Fiber Converter (ST-Type) (RoHS)
