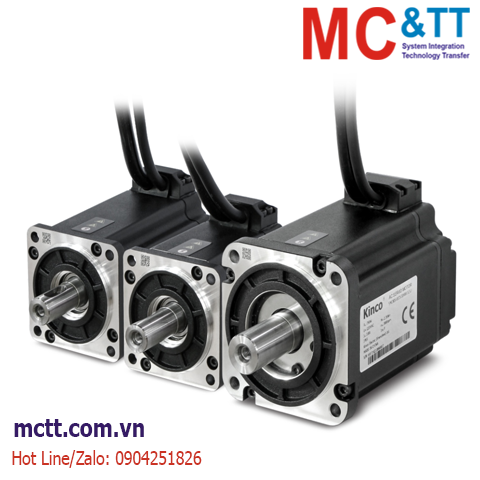

Động cơ AC Servo 2KW, 2000 rpm with brake Kinco SMC130D-0200-20MBK-5HSP

Thương hiệu: Kinco | Tình trạng: Còn hàng

Liên hệ

Động cơ AC Servo 200W~3KW Kinco SMC-G2 series

THÔNG TIN SẢN PHẨM

Tính năng

New electromagnetic design

Adopting 12-slot and 10-pole design, with small slot torque and low torque pulsation, which is conducive to reducing the vibration during the operation of the motor and making the torque output more smooth

New structure and short fuselage

The redesign of the fuselage structure shortens the length of the fuselage, which can save more installation space and reduce the size of the equipment for customers' equipment

Insulation class F

The motor in the industry is at the highest insulation level, which can maintain high reliability and stability in high temperature extreme environment

Energy efficiency class: 2

Thông số kỹ thuật

Series	Model	Rated power Pn(W)	Rated torqueTn (Nm)	Rated speed Nn(rpm)	Rated current In(A)	Shaft diameter (mm）	Length (mm)
							□=A	□=B (brake motor)
60 Flange	SMC60S-0020-30M■K-5LSU	200	0.64	3000	1.5	14	75±1.5	112±1.5
	SMC60S-0020-30Q■K-5LSU
	SMC60S-0020-30□■K-5LSU						86.5±1.5	122±1.5
	SMC60S-0040-30M■K-5LSU	400	1.27		2.9		97±1.5	134.5±1.5
	SMC60S-0040-30Q■K-5LSU
	SMC60S-0040-30□■K-5LSU						108.5±1.5	144.5±1.5
80 Flange	SMC80S-0075-30M■K-5LSU	750	2.39		4	19	106.7±1.5	141±1.5
	SMC80S-0075-30Q■K-5LSU
	SMC80S-0075-30□■K-5LSU						118.2±1.5	150±1.5
130 Flange	SMC130D-0100-20□■K-5LSP	1KW	4.78	2000	4.5 (ref.)	22	143.5±1.5	203.5±1.5
	SMC130D-0100-10MAK-5LSP	1KW	9.55	1000	4.6 (ref.)		171±1.5	-
	SMC130D-0150-20□■K-5LSP	1.5KW	7.16	2000	7.7 (ref.)		163.5±1.5	223.5±1.5
	SMC130D-0200-20□■K-5LSP	2KW	9.55		9.5 (ref.)		179.5±1.5	239.5±1.5
	SMC130D-0150-20□■K-5HSP	1.5KW	7.16		3.85 (ref.)		163.5±1.5	223.5±1.5
	SMC130D-0150-10MAK-5HSP	1.5KW	14.33	1000	3.8 (ref.)		203.5±1.5	-
	SMC130D-0200-20□■K-5HSP	2KW	9.55	2000	4.75 (ref.)		179.5±1.5	239.5±1.5
	SMC130D-0300-20□■K-5HSP	3KW	14.33		7 (ref.)		213.5±1.5	273.5±1.5
Note： □ = V ：Singleturn communication type optical encoder Y ： Multiturn communication type optical absolute encoder M ：Singleturn communication type magnetoelectric encoder Q ：Multiturn communication type magnetoelectric absolute encoder ■ = A ： Motor without brake B ： Motor with brake

Thông tin đặt hàng

Tài liệu

KincoCatalog_FD5_Servo_K1E56_23
