Bộ lưu trữ Data Logger 4 kênh đo nhiệt độ Thermocouple K ICP DAS TCD-104/S400 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

4-ch K-type Thermocouple

THÔNG TIN SẢN PHẨM

Feature

4-channel K-type thermocouple (± 0.5℃ Accuracy)
Thermocouple length: 50 cm
Sampling Rate: 50 ms to 60000 seconds
Max. recording for each channel: 450,000
Traceable temperature data
Easy-to-use software interface
Powered by 4x AAA batteries (60 hours @ 50 ms sampling rate)
400℃ operating temperature with thermal insulation box

Introduction

TCD-104 temperature measurement module can provide high-precision temperature measuring capability with standard K-type thermocouple. Besides, TCD-104 has built-in over-temperature protection, intelligent temperature data logging capability, automatic analysis result output (highest Tin temperature, tinning time, heating rate, etc.).

Application

SMD assembly manufacturing, PC board manufacturing, footware manufacturing, food industry, pharmaceutical industry and any temperature measurement required industries.

Specifications

LED Indicators
Status	Log : Yellow for data logger Power : Green for normal operation Error : Red for error indicator

Temperature Measurement
Sensor Type	K-Type
Channels	4
Range	-270°C to 1372°C (-454°F to 2502°F)
Resolution	0.1ºC
Accuracy	±0.5ºC

System
Data Logger	450,000 records

USB
Specification	USB 2.0 Full-Speed

Power
Consumption	0.06 W Max.
Battery Usage Life	Operating for more than 60 hours with heavy-duty AAA battery x 4

Mechanical
Dimensions (mm)	104 x 169 x 21 (W x L x H)

Environment
Operating Temperature	-40 to +400°C
Humidity	10 to 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

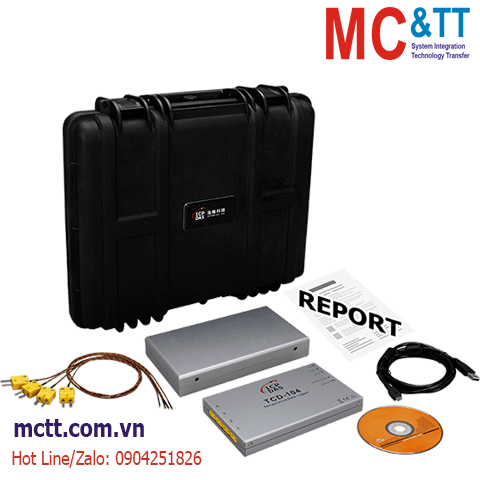

TCD-104/S400 CR

4-ch K type Thermocouple Data Logger Module for Portable Measurement up to 400℃. (RoHS)
Includes thermal insulation box and software.
