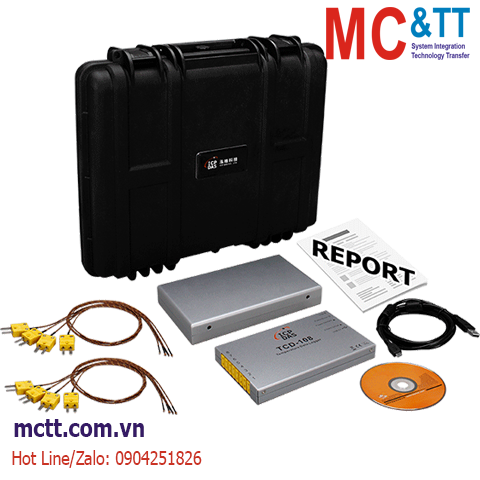

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ lưu trữ Data Logger 8 kênh đo nhiệt độ Thermocouple K ICP DAS TCD-108/S400 CR
Feature
Introduction
TCD-108 temperature measurement module can provide high-precision temperature measuring capability with standard K-type thermocouple. Besides, TCD-108 has built-in over-temperature protection, intelligent temperature data logging capability, automatic analysis result output (highest Tin temperature, tinning time, heating rate, etc.).
Application
SMD assembly manufacturing, PC board manufacturing, footware manufacturing, food industry, pharmaceutical industry and any temperature measurement required industries.
Specifications
| LED Indicators | |
|---|---|
| Status | Log : Yellow for data logger Power : Green for normal operation Error : Red for error indicator |
| Temperature Measurement | |
|---|---|
| Sensor Type | K-Type |
| Channels | 8 |
| Range | -270°C to 1372°C (-454°F to 2502°F) |
| Resolution | 0.1ºC |
| Accuracy | ±0.5ºC |
| System | |
|---|---|
| Data Logger | 300,000 records |
| USB | |
|---|---|
| Specification | USB 2.0 Full-Speed |
| Power | |
|---|---|
| Consumption | 0.06 W Max. |
| Battery Usage Life | Operating for more than 60 hours with heavy-duty AAA battery x 4 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 104 x 169 x 21 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -40 to +400°C |
| Humidity | 10 to 95% RH, Non-condensing |
Download
Ordering Information
| TCD-108/S400 CR | 8-ch K type Thermocouple Data Logger Module for Portable Measurement up to 400℃ (RoHS) Includes thermal insulation box and software. |
