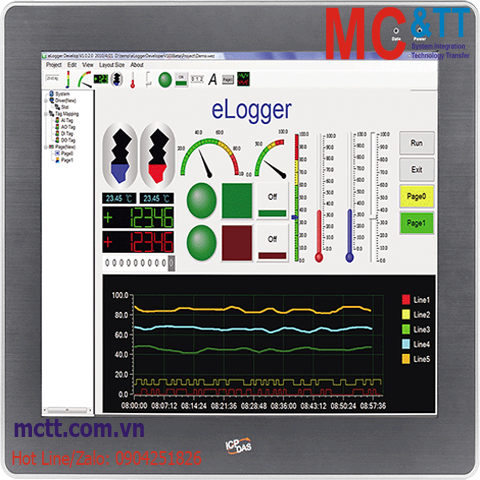

Màn hình cảm ứng công nghiệp 17 inch ICP DAS TP-7170/NP CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

17" 1280 x 1024 Resistive Touch Panel with RS-232 or USB, w/o Power Supply

THÔNG TIN SẢN PHẨM

Features

• 17" LCD supports 1280 x 1024 resolution
• Resistive Touch Panel
• Full-function OSD control
• Driver Support: Windows 2k/XP/Vista/7/8/10/WES/WinCE 5.0/6.0/7.0/Linux
• LED backlight technology
• NEMA 4/IP65 Compliant Front Panel
• Wide operating temperature: -20 ~ +70°C

Introduction

The TP-7170/NP Panel Mount Monitor adopts a standard 17" TFT LCD screen with rugged aluminum front bezel and supports 1280 x 1024 resolution, and -20 ~ 70°C operating temperature. The TP-7170/NP is also guaranteed to work with ICP DAS PAC control system, such as WP8000 series, LinPAC series and XP-9000 series.

Application

Specifications

Display
Size	17"
Backlight Life	50,000 hours
Brightness	350 cd/m2
Resolution	1280 x 1024
Touch Panel	5-wire, analog resistive; light transmission: 80%
Contrast Ratio	500：1

LED Indicators
Status	1 x Power, 1 x Display

COM Ports
Ports	1 x RS-232 (Combo)

HMI
Power Switch	Yes
OSD Control	Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness

USB
Ports	1

Power
Input Range	+12 ~ 48 VDC
Consumption	22.0 W

Mechanical
Casing	Plastic
Dimensions (mm)	413 x 359 x 70 (W x L x H)
Installation	Panel Mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm)
Ingress Protection Rating	Front panel: IP65
Weight	5.3 kg

Environment
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90 % RH, Non-condensing

Specification Memo

RS-232 and USB cannot be used simultaneously.

Download

Datasheet

Documents

Ordering Information

TP-7170/NP CR

17" 1280 x 1024 Resistive Touch Panel with RS-232 or USB, w/o Power Supply (RoHS)
