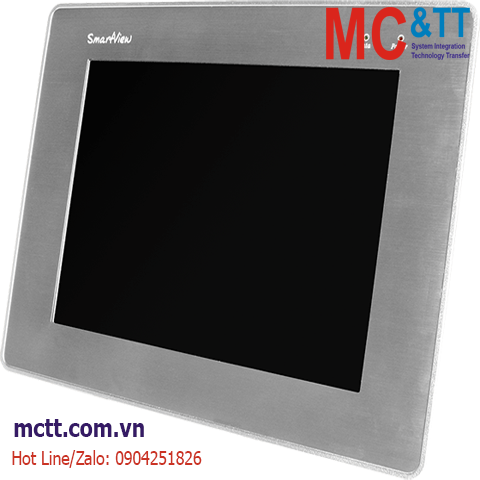

Màn hình cảm ứng công nghiệp 10.4 inch ICP DAS TPM-4100/NP CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

10.4" 800 x 600 Aluminum Resistive Touch Panel with RS-232 or USB, w/o Power Supply

THÔNG TIN SẢN PHẨM

Features

• 10.4" LCD supports 800 x 600 resolution
• Resistive Touch Panel
• Full-function OSD control
• Driver Support: Windows 2k/XP/Vista/7/8/10/WES/WinCE 5.0/6.0/7.0/Linux
• LED backlight technology
• Aluminum Casing
• IP65 Compliant Front Panel
• Wide operating temperature: -20 ~ +70°C

Introduction

The TPM-4100/NP Panel Mount Monitor adopts a standard 10.4" TFT LCD screen with rugged aluminum front bezel and supports 800 x 600 resolution, and -20 ~ +70°C operating temperature. The TPM-4100/NP is also guaranteed to work with ICP DAS PAC control system, such as WP-8000 series, LX-8000 series and XP-9000 series.

Application

Specifications

Display
Size	10.4"
Backlight Life	50,000 hours
Brightness	400 cd/m2
Resolution	800 x 600
Touch Panel	4-wire, analog resistive; light transmission: 80%
Contrast Ratio	500：1

LED Indicators
Status	1 x Power, 1 x Display

COM Ports
Ports	1 x RS-232 (Combo)

HMI
Power Switch	Yes
OSD Control	Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness

USB
Ports	1

Power
Input Range	+12 ~ 48 VDC
Consumption	8.5 W

Mechanical
Casing	Aluminum
Dimensions (mm)	293 x 231 x 53 (W x L x H)
Installation	Panel Mounting
Ingress Protection Rating	Front panel: IP65
Weight	4.1 kg

Environment
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90 % RH, Non-condensing

Specification Memo

RS-232 and USB cannot be used simultaneously.

Download

Datasheet

Documents

Ordering Information

TPM-4100/NP CR

10.4" 800 x 600 Aluminum Resistive Touch Panel with RS-232 or USB, w/o Power Supply (RoHS)
