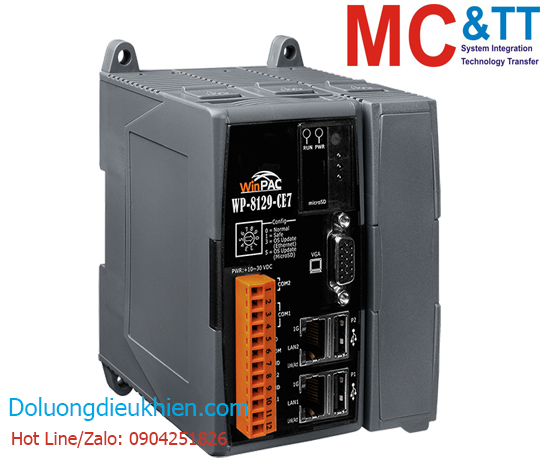

Bộ lập trình nhúng InduSoft PAC 1500 tag CPU Cortex-A8 + WinCE 7.0 + 1 slot module I/O ICP DAS WP-8129-CE7-1500 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

InduSoft (1500 tags) Based, 1-slot WinPAC (WinCE 7.0) (RoHS)

THÔNG TIN SẢN PHẨM

Features

• Cortex-A8, 1GHz CPU
• 512 MB DDR3 and 256 MB Flash
• Windows CE 7.0 Professional
• Hard Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Slots
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
• Operating Temperature: -25 ~ +75°C

Introduction

The WP-8x29-CE7 is the new generation Windows CE 7.0 based PAC with InduSoft Runtime pre-installed of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system. Each WP-8x29-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/4/8 expansion I/O slots that can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.

Specifications

Software
OS	Windows CE 7.0
Service	FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve
Multilanguage Support	English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines
SDK	Dll for VC, Dll for Visual Studio.Net 2008

Main Unit
CPU	Cortex-A8 (1.0 GHz)
64-bit Hardware Serial Number	Yes, for Software Copy Protection
System Memory	DDR3 SDRAM: 512 MB
Non-Volatile Memory	MRAM: 128 KB; EEPROM: 16 KB
Storage	Flash: 256 MB; microSD slot with one microSD card (support up to 32 GB)
Real Time Clock	Provide second, minute, hour, date, day of week, month, year
Watchdog Timer	Yes

Display
Signal	VGA: 800 x 600, 1024 x 768

LED Indicators
Status	1 x Programmable

I/O Expansion
Slots	1

COM Ports
Ports	1 x RS-232, Non-isolated; 1 x RS-485 (3000VDC Isolated)

HMI
Rotary Switch	Yes (0 ~ 9)
DIP Switch	Yes (8 bits)

Ethernet
Ports	2 x RJ-45, 10/100/1000Base-TX

USB
Connector	2 x USB

Power
Input Range	+10 VDC ~ +30 VDC
Redundant Power Inputs	Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption	7.3 W (0.3 A @ 24 VDC)

Mechanical
Dimensions (mm)	95 x 132 x 111 (W x L x H)
Installation	DIN-Rail & wall mounting

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, non-condensing

Download

Data sheet

Documents

Ordering infromation

WP-8129-CE7-1500 CR

InduSoft (1500 tags) Based, 1-slot WinPAC (WinCE 7.0) (RoHS)
