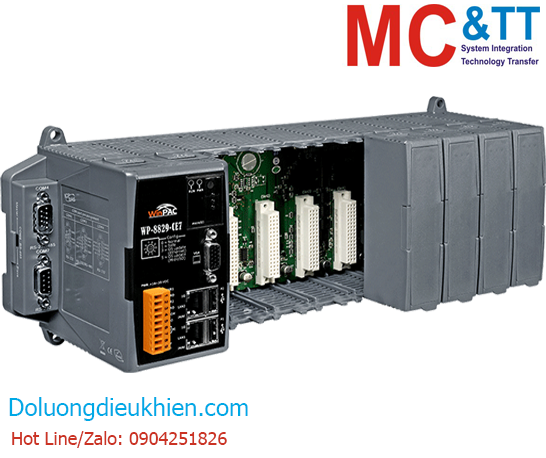

InduSoft (1500 tags) Based, 8-slot WinPAC
Bộ lập trình nhúng InduSoft PAC 1500 tag CPU Cortex-A8 + WinCE 7.0 + 8 slot module I/O ICP DAS WP-8829-CE7-1500 CR
Features
• Cortex-A8, 1GHz CPU
• 512 MB DDR3 and 256 MB Flash
• Windows CE 7.0 Professional
• Hard Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Slots
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
• Operating Temperature: -25 ~ +75°C
Introduction
The WP-8x29-CE7 is the new generation Windows CE 7.0 based PAC with InduSoft Runtime pre-installed of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system. Each WP-8x29-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/4/8 expansion I/O slots that can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.
Specifications
Software | |
---|---|
OS | Windows CE 7.0 |
Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve |
Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
Main Unit | |
---|---|
CPU | Cortex-A8 (1.0 GHz) |
64-bit Hardware Serial Number | Yes, for Software Copy Protection |
System Memory | DDR3 SDRAM: 512 MB |
Non-Volatile Memory | MRAM: 128 KB; EEPROM: 16 KB |
Storage | Flash 256: MB; microSD slot with one microSD card (support up to 32 GB) |
Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
Watchdog Timer | Yes |
Display | |
---|---|
Signal | VGA: 800 x 600, 1024 x 768 |
LED Indicators | |
---|---|
Status | 1 x Programmable |
I/O Expansion | |
---|---|
Slots | 8 |
COM Ports | |
---|---|
Ports | 2 x RS-232, Non-isolated; 1 x RS-232/485, Non-isolated; 1 x RS-485 (3000VDC Isolated) |
HMI | |
---|---|
Rotary Switch | Yes (0 ~ 9) |
DIP Switch | Yes (8 bits) |
Ethernet | |
---|---|
Ports | 2 x RJ-45, 10/100/1000Base-TX |
USB | |
---|---|
Connector | 2 x USB |
Power | |
---|---|
Input Range | +10 VDC ~ +30 VDC |
Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
Consumption | 9.6 W (0.4 A @ 24 VDC) |
Mechanical | |
---|---|
Dimensions (mm) | 355 x 132 x 111 (W x L x H) |
Installation | DIN-Rail & wall mounting |
Environmental | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +80°C |
Humidity | 10 ~ 90% RH, non-condensing |
Download
Ordering infromation
WP-8829-CE7-1500 CR | InduSoft (1500 tags) Based, 8-slot WinPAC (WinCE 7.0) (RoHS) |
