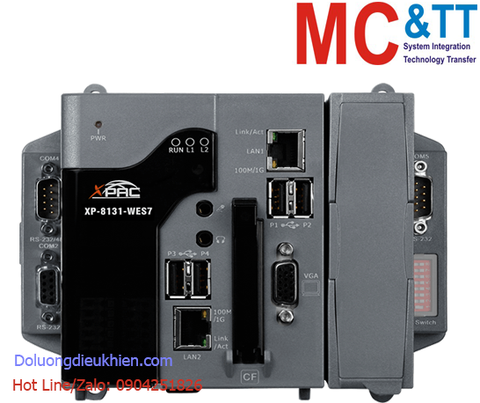

Bộ lập trình nhúng Windows PAC với CPU x86 WES7 + 1 khe cắm module I/O ICP DAS XP-8131-WES7 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

1-slot Standard PAC with x86 CPU and WES7

THÔNG TIN SẢN PHẨM

Feature

• Windows Embedded Standard 7 SP1 x86 (32-bit)
• x86 CPU, 1 GHz, dual-core
• 2 GB DDR3 SDRAM
• 32 GB SSD
• VGA Port Output
• 2 10/100/1000M Ethernet Ports
• Audio with Microphone-In and Earphone-Out
• Redundant Power Input
• Operating Temperature: -25 ~ +75 °C

Introduction

The XP-8131-WES7 are WES7 based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with a x86 (1 GHz, dual-core) CPU, an I/O expansion slot and a variety of connectives including dual Gigabit Ethernet, VGA, USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-8K and I-87K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules. Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based PACs.

Specification

Software
OS	Windows Embedded Standard 7 SP1 x86 (32-bit)
Service	IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Framework Support	.Net Compact Framework 4.5
Multilanguage Support	English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese
SDK	Dll for VC, Dll for Visual Studio.Net

Main Unit
CPU	x86 CPU, 1 GHz, dual-core
64-bit Hardware Serial Number	Yes
System Memory	2GB DDR3 SDRAM, 32 GB Flash
Non-Volatile Memory	512 KB MRAM, 16 KB EEPROM
Storage	16 GB CF card (up to 32 GB)
Real Time Clock	Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer	Dual Watchdog Timer

Display
Signal	VGA
Resolution	1920 x 1080, 1024 x 768, 800 x 600 , 640 x 480

LED Indicators
Status	1 x System, 1 x Power, 2 x Programmable

I/O Expansion
I/O Type	I-8K, I-87K series
Slots	1

COM Ports
Ports	2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485

HMI
Buzzer	Yes
Rotary Switch	1 x 10 Position (0 ~ 9)
DIP Switch	8-bit for address

Audio
Cable	Microphone-in and Earphone-out

Ethernet
Ports	2 x RJ-45, 10/100/1000 Base-TX

USB
Ports	4 x USB 2.0

Power
Capacity	25 W
Input Range	+10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs	Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption	16.6 W (0.69 A @ 24 VDC)

Mechanical
Dimensions (mm)	169 x 132 x 125 (W x L x H)
Installation	DIN-Rail, Wall mounting

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90 % RH, Non-condensing

Download

Data sheet

D ocuments

Odering infromation

XP-8131-WES7 CR

1-slot Standard PAC with x86 CPU and WES7 (RoHS)
