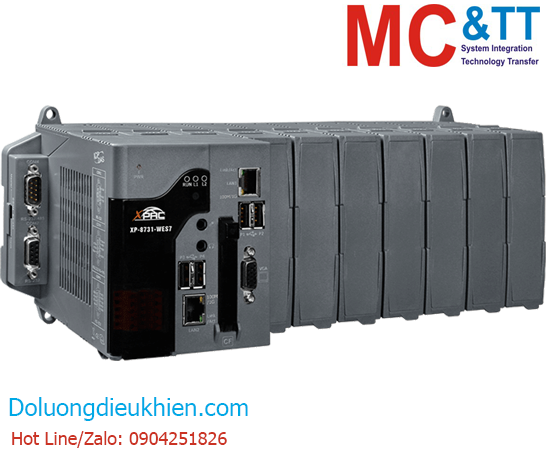

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ lập trình nhúng Windows PAC với CPU x86 WES7 + 7 slot module I/O ICP DAS XP-8731-WES7 CR
Feature
• Windows Embedded Standard 7 SP1 x86 (32-bit)
• x86 CPU, 1 GHz, dual-core
• 2 GB DDR3 SDRAM
• 32 GB SSD
• VGA Port Output
• 2 10/100/1000M Ethernet Ports
• Audio with Microphone-In and Earphone-Out
• Redundant Power Input
• Operating Temperature: -25 ~ +75 °C
Introduction
The XP-8731-WES7 are WES7 based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with a x86 (1 GHz, dual-core) CPU, 7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA, USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-8K and I-87K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules. Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based PACs.
Specification
| Software | |
|---|---|
| OS | Windows Embedded Standard 7 SP1 x86 (32-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Compact Framework 4.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
|---|---|
| CPU | x86 CPU, 1 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2GB DDR3 SDRAM, 32 GB Flash |
| Non-Volatile Memory | 512 KB MRAM, 16 KB EEPROM |
| Storage | 16 GB CF card (up to 32 GB) |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA |
| Resolution | 1920 x 1080, 1024 x 768, 800 x 600 , 640 x 480 |
| LED Indicators | |
|---|---|
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
|---|---|
| I/O Type | I-8K, I-87K series |
| Slots | 7 |
| COM Ports | |
|---|---|
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| DIP Switch | 8-bit for address |
| Audio | |
|---|---|
| Cable | Microphone-in and Earphone-out |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| USB | |
|---|---|
| Ports | 4 x USB 2.0 |
| Power | |
|---|---|
| Capacity | 35 W |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 18 W (0.75 A @ 24 VDC) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 355 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Download
Odering infromation
| XP-8731-WES7 CR | 7-slot Standard PAC with x86 CPU and WES7 (RoHS) |
