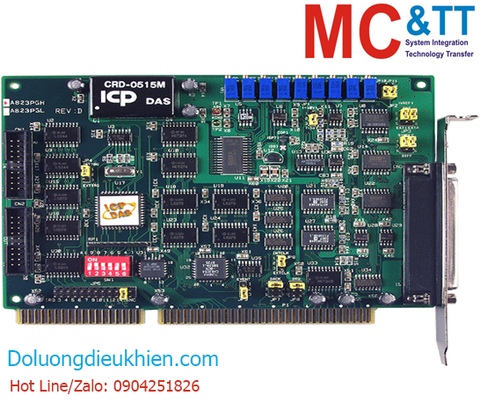

Card ISA 16 kênh AI 12 bits, 125 kS/ + 2 kênh AO + 16 kênh DI/DO + 1 kênh Timer/Counter/Frequency ICP DAS A-823PGH/S CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

ISA Bus, 125 kS/s, 16-ch 12-bit AI MultiFunction Board

THÔNG TIN SẢN PHẨM

Features

12-bit A/D converter
12-bit D/A converter
16 single-ended or 8 differential input channels
125 k/s sampling rate
Two 12-bit analog output channels
Analog Output Range: 0 ~ 5 V , 0 ~ 10 V, 0 ~ Ext Ref, +/- 5 V, +/- 10 V, +/- Ext Ref
Software programmable gain:
- A-823PGL (Low Gain Version ) : 0.5 , 1 , 2 , 4 , 8
- A-823PGH(High Gain Version) : 0.5 , 1 , 5 , 10 , 50 , 100 , 500 , 1000
Interrupt handling
A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
A/D data transfer modes : polling , interrupt , DMA
16 digital input & 16 digital output
37 pin D-Sub connector

Introduction

The A-823PGH/L is 12-bit multifunction analog and digital I/O boards for the PC/AT compatible computer. The A-823PGH/L offer 16 single-ended or 8 differential analog inputs, plus two channels of analog output with 12-bits resolution. In addition, The A-823PGH/PGL has 16 digital input, 16 digital output , and one timer/counter channel. The A-823PGH Provides gain of 0.5, 1, 5, 10, 50 ,100 , 500 , 1000 while the A-823PGL provides gains of 0.5 , 1 , 2 , 4, 8 . It has a maximum sampling rate of 125 k Sample/Sec., DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.

ICP DAS discontinue the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contacts us for OEM/ODM project if you are interested on customized version (or /NDA model).

Specification

Hardware
Connector	Female DB37 x 1 20-pin box header x 2

Analog Input
Channels	16 single-ended/8 differential
Range	Gain: 0.5, 1, 5, 10, 50, 100, 500 ,1000 Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1 V, ±0.05 V, ±0.01 V, ±0.005 V Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V
Resolution	12-bit
Accuracy	0.1% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	125 kS/s. Max.
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	15 ppm/°C of FSR
Trigger Mode	Software, Pacer, External
Data Transfer	Polling, Interrupt(DMA)

Analog Output
Channels	2
Range	± 5 V , ± 10 V, ± Ext Ref, 0 ~ 10 V, 0 ~ 5 V, 0 ~ Ext Ref V
Resolution	12-bit
Accuracy	±6 LSB
Voltage Output Capability	±5 mA
Response Time	500 kHz (Typical)
Slew Rate	0.6 us to 0.01% for full scale step
Operation Mode	Static Update

Digital Input
Channels	16
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Max. Load Current	Sink: 40 mA Source: 20 mA
Response Speed	1.0 MHz (Typical)

Timer/Counter/Frequency
Channels	1
Type	5 V/TTL
Resolution	16-bit

PC Bus
Type	ISA
Data Bus	8-bit

Power
Consumption	960 mA @ +5 V

Mechanical
Dimensions (mm)	124 X 163 X 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

A-823PGH/S CR

ISA Bus, 125 kS/s, 16-ch 12-bit Analog Input Multifunction Board (Daughter Board DB-8225) (RoHS)
Includes one CA-3710 D-Sub cable
