DeviceNet Slave Module of 8-channel Isolated (Wet) DI, 8-channel Isolated (Sink, NPN) DO

THÔNG TIN SẢN PHẨM

Features

DeviceNet general I/O slave devices
Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
Group 2 Only Server (non UCMM-capable)
Support Predefined Master/Slave Connection Set
Connection supported:
- 1 connection for Explicit Messaging
- 1 connection for Polled I/O
- 1 connection for Bit-Strobe I/O connection
Support DeviceNet heartbeat and shutdown messages
Provide EDS file for DeviceNet master interface

Introduction

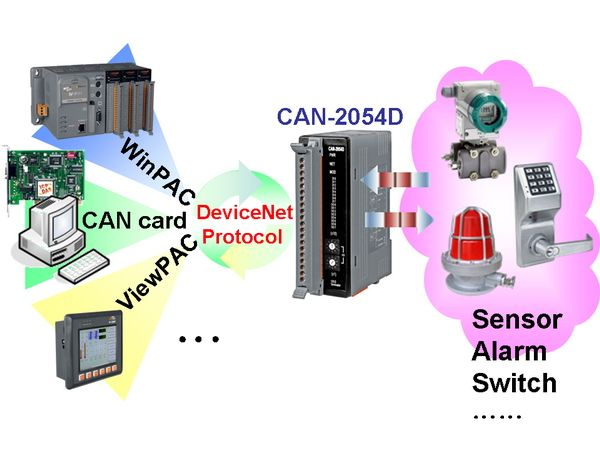

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2054D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital I/O status and set the configuration via DeviceNet EDS file. This module has 8-channel isolated sink/source input and 8-channel isolated sink output. It can be applied to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.

Application

We have communicated with the following DeviceNet masters or gateways.

• Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
• OMRON CJ1W-DRM21
• OMRON CS1W-DRM21-V1
• OMRON C200HW-DRM21-V1
• OMRON 3G8F7-DRM21-E

Specification

LED Indicators
Status	1 x Power 2 x DeviceNet status

Digital Input
Channels	8 (Sink/Source)
Wet Contact, ON Voltage Level	+3.5 ~ +30 VDC
Wet Contact, OFF Voltage Level	+1 VDC Max.
Input Impedance	3 kΩ, 0.3 W

Digital Output
Channels	8 (Sink)
Type	Open Collector
Load Voltage	+5 ~ +30 VDC
Max. Load Current	700 mA per channel
Intra-module Isolation	3750 Vrms

DeviceNet
Ports	1
Connection Supported	1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O
Baud Rate	125 kbps, 250 kbps, 500 kbps
Terminal Resistor	Switch for 120 Ω terminal resistor
Specification	Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
Node ID	0 ~ 63
Shutdown Message	Yes
Heartbeat Message	Yes
Subscribe	Group 2 Only Server

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	1.5 W

Mechanical
Dimensions (mm)	32.3 x 99 x 77.5 ( W x L x H )
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 ℃
Storage Temperature	-30 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-2054D CR

DeviceNet Slave Module of 8-channel DI and DO (RoHS)
