Module DeviceNet 2 khe cắm module I/O ICP DAS CAN-8224-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

DeviceNet Remote I/O Unit with 2 I/O Slots

THÔNG TIN SẢN PHẨM

Features

• DeviceNet Version : DeviceNet Specification Volume I & II, Release 2.0
• Number of Nodes : 64(Max)
• Baud Rate : 125K, 250K, 500K
• Support Message Groups : Group 2 only Server
• UCMM : Not Support
• I/O Operating Modes : Poll, Bit-Strobe, Change of State/ Cyclic
• No. of Fragment I/O : 128 Bytes (Max) (Input/ Output)
• MAC ID Setting : Rotary Switch
• Baud Rate Setting : Rotary Switch

Introduction

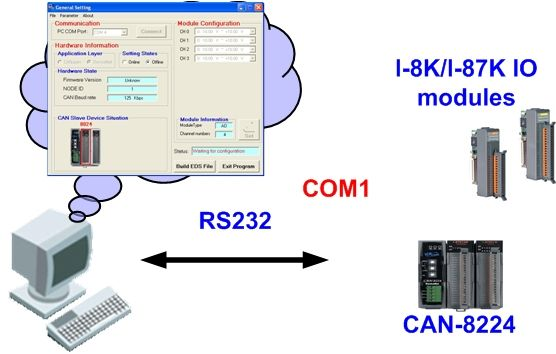

The CAN-8224 main control unit is specially designed for the slave device of DeviceNet protocol. It follows the Specification of DeviceNet. In order to expand I/O channel more flexible, an CAN-8224 supports 2 slots for I/O expansion and suits with a lot of ICP DAS DI/AI/DO/AO modules. Users can choice DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customized practice applications. In addition, we also provide CAN Slave Utility to allow users to create the EDS file dynamically. The EDS file is based on DeviceNet and can be compatible with different DeviceNet master interfaces.

Application

• Automotive
• Food & Beverage
• Packaging
• High-speed Assembly
• Pulp & Paper
• Semiconductor Fabrication
• Control System...etc

Specification

CPU Module
CPU	80186, 80 MHz or compatible
EEPROM	16 KB
Flash	512 KB
NVRAM	31 bytes (battery backup, data valid for up to 10 years)
SRAM	512 KB
Real Time Clock	Yes
Watchdog Timer	Watchdog IC

LED Indicators
Status	1 x Power 2 x DeviceNet status

I/O Expansion
Slots	2 slots

DeviceNet
Controller	NXP SJA1000T with 16 MHz clock
Transceiver	NXP 82C250
Ports	1
Connection Supported	1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O 1 connection for COS/Cyclic I/O
Baud Rate	125 k, 250 k, 500 k
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Jumper for 120 Ω terminal resistor
Specification	Volume I, Release 2.0 & Volume II, Release 2.0
Node ID	0 ~ 63
Shutdown Message	Yes
Subscribe	Group 2 Only Server

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	2 W

Mechanical
Dimensions (mm)	95 x 132 x 91 (W x L x H)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 ℃
Storage Temperature	-30 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-8224-G

DeviceNet Remote I/O Unit with 2 I/O Slots
