Module DeviceNet 4 khe cắm module I/O ICP DAS CAN-8424-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

DeviceNet Remote I/O Unit with 4 I/O Slots

Gọi +84 904251826 để được trợ giúp

Module DeviceNet 4 khe cắm module I/O ICP DAS CAN-8424-G CR

Features

• DeviceNet Version : DeviceNet Specification Volume I & II, Release 2.0
• Number of Nodes : 64(Max)
• Baud Rate : 125K, 250K, 500K
• Support Message Groups : Group 2 only Server
• UCMM : Not Support
• I/O Operating Modes : Poll, Bit-Strobe, Change of State/ Cyclic
• No. of Fragment I/O : 128 Bytes (Max) (Input/ Output)
• MAC ID Setting : Rotary Switch
• Baud Rate Setting : Rotary Switch

Introduction

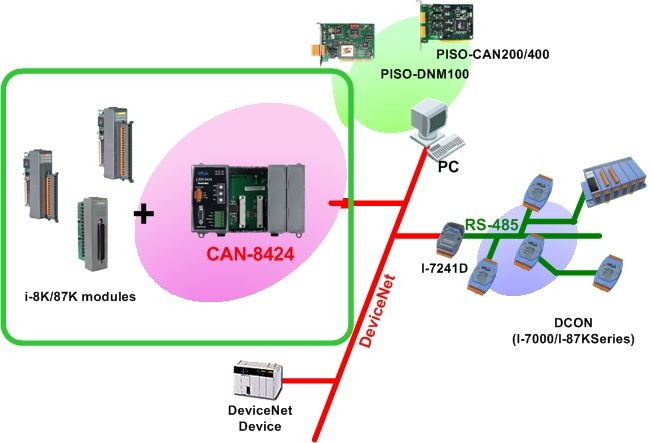

The CAN-8424 main unit based on the modular design offers many good features to the users and provides more flexibility in data acquisition and control system. In addition, ICP DAS also presents a CAN-8424 Utility tool to allow users to configure and create the EDS file for the specific IO modules plugged in. Therefore, users can easily apply the CAN-8424 embedded controller in DeviceNet network.

Specification

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 16 KB
Flash 512 KB
NVRAM 31 bytes (battery backup, data valid for up to 10 years)
SRAM 512 KB
Real Time Clock Yes
Watchdog Timer Watchdog IC



LED Indicators
Status 1 x Power
2 x DeviceNet status



I/O Expansion
Slots 4 slots



COM Ports
Ports 1 x RS-232 (Utility Port)
9-pin male D-Sub (DTE: RxD, TxD, RTS, CTS, DTR, DSR, RI, GND)



DeviceNet
Controller NXP SJA1000T with 16 MHz clock
Transceiver NXP 82C250
Ports 1
Connection Supported 1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
1 connection for COS/Cyclic I/O
Baud Rate 125 k, 250 k, 500 k
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Specification Volume I, Release 2.0 & Volume II, Release 2.0
Node ID 0 ~ 63
Shutdown Message Yes
Subscribe Group 2 Only Server



Power
Input Range +10 VDC ~ +30 VDC
Consumption 2.5 W



Mechanical
Dimensions (mm) 188 x 132 x 91 (W x L x H)
Installation DIN-Rail



Environmental
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-8424-G  DeviceNet Remote I/O Unit with 4 I/O Slots
