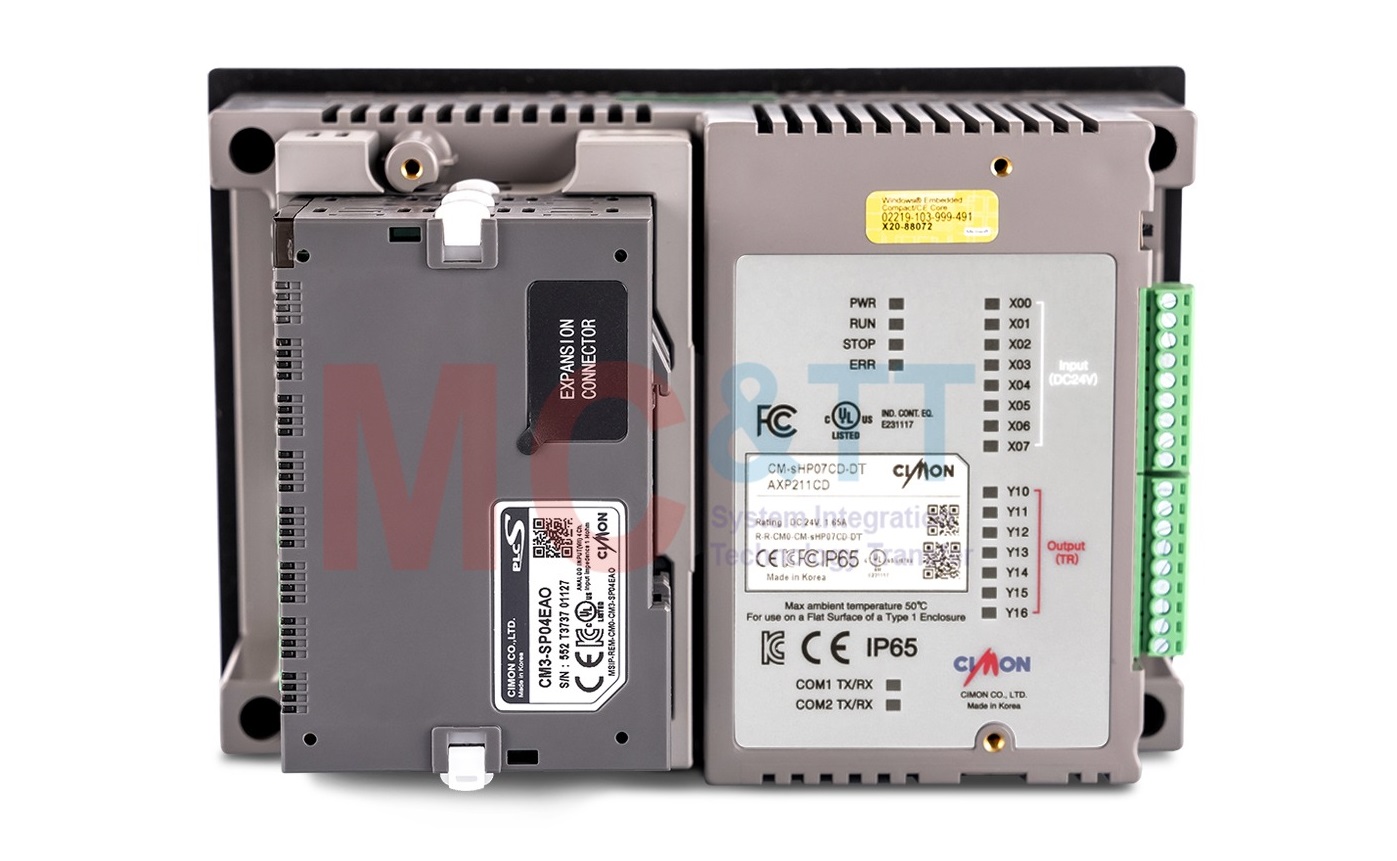

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng HMI 7 inch tích hợp PLC HYBRID Xpanel Cimon CM-sHP07CD-DT
Tính năng
Thông số kỹ thuật
HMI Part (Xpanel)
| Model | CM-sHP07CD-DR | CM-sHP07CD-DT | CM-sHP07CD-DC |
| Rated Voltage | 24VDC (0.46 A) | 24 VDC (0.33 A) | |
| Resolution | WVGA 800×400 | ||
| Backlight | LED | ||
| Luminance | 600 cd/m² | ||
| Backlight Life | 50,000 hours | ||
| Touch Panel | 4 wire resistive | ||
| Memory | 128 MB DDR2 | ||
| Storage | 128 MB SLC NAND Flash | ||
| SD Card | 1 SD slot | ||
| Comm. Ports (HMI) | 1 Ethernet (10/100 Base-T), 1 Serial (internal), 1 Serial (RS-232C/422/485) |
||
| Comm. Ports (PLC) | 1 Ethernet (10/100 Base-T), 1 Serial (internal), 1 Serial (RS-232C), 1 Serial (RS-422/485) |
||
| USB 2.0 Host | 1 port | ||
| Tool Port (HMI + PLC) | 1 USB mini-B | ||
| Audio | 1 port | ||
| Output (PLC) | Relay output 8 pts | TR output (SINK) 7 pts | TR output (SRC) 7 pts |
| Input (PLC) | TR input 8 pts | ||
| Max. I/O + Expansion | 94 pts / 1 option module + 2 PLC-S modules | ||
| OS | Windows CE 6.0 | ||
| Weight | 0.85 kg (1.87 lbs) | ||
| Item | Specification | |
|---|---|---|
| Program language | Ladder Diagram (LD), Instruction List (IL), Sequential Function Chart (SFC), Function Block Diagram (FBD) |
|
| Data processing method | 32 Bit | |
| Instructions | Sequence | Approx. 60 Instructions |
| Application | Approx. 480 Instructions | |
| Processing speed (Sequence) | 300 ns/Step | |
| No. of Program Blocks | Max. 128 | |
| Program Type | Scan, Subroutine, Periodic Interrupts, Special, Initialization | |
| Operation mode | Remote Run, Remote Stop | |
| Back-up method | K Device and Conservation (Latch) in M, L, T, C, S, D device | |
| Self-Diagnosis | Monitor Scan Time Delay, Errors in Memory, I/O, Battery & Power |
|
| Etc. | Floating Point Arithmetic, Online Edit | |
| RTC | Embedded (Battery CR2032 Backup) | |
| Program Capacity | 10k Steps | |
| High Speed Counter | Maximum Count Speed 20 kHz (Maximum 5 kHz When Using 2 phase 2 ch) |
|
| PID | 32 ch Auto-Tuning | |
| Positioning | 2-Axis, 2 ch, Maximum 100 kHz | |
| Data memory | X | 1024 pts (X0000 – X063F) |
| Y | 1024 pts (Y0000 – Y063F) | |
| M | 8192 pts (M0000 – M511F) | |
| L | 4096 pts (L0000 – L255F) | |
| K | 4096 pts (K0000 – K255F) | |
| F | 2048 pts (F0000 – F127F) | |
| T | 512 pts (T0000 – T0511) | |
| C | 512 pts (C0000 – C0511) | |
| S | 100 states x 100 set (00.00 – 99.99) | |
| D | 10000 words (D0000 – D9999) | |
| Z | 1024 words (Call Stack : Z0000 – Z0063, Z1000 – Z1063) | |
| R | 16 points (Index) | |
Thông tin đặt hàng
Hybrid Xpanel Product Line-Up
| NO | Model | Description |
| 1 | CM-sHP07CD-DR | XPANEL(XT07) + PLC(CPU, RS232C, RS485), DC24V, Relay DI 8/DO8/USB Loader, 2 Ethernet, SD card slot |
| 2 | CM-sHP07CD-DT | XPANEL(XT07) + PLC(CPU, RS232C, RS485), DC24V, TR output (Sink) DI 8/DO 8/USB Loader, 2 Ethernet, SD card slot |
| 3 | CM-sHP07CD-DC | XPANEL(XT07) + PLC(CPU, RS232C, RS485), DC24V, TR output (Source) DI 8/DO 8/USB Loader, 2 Ethernet, SD card slot |
Tùy chọn
| Expansion Modules (PLC-S) | |||
|---|---|---|---|
| 1 | CM-HP-DM | DUMMY | sHP07 dummy, for protection of Hybrid expansion port, or expansion to PLC-S modules |
| 2 | CM-HP-EAA | AIO-4 | Analog module for sHP07 (AI 2 Ch, AO 2 Ch) (0–5 V, 1–5 V, 0–10 V, -10–10 V, 0–20 mA, 4–20 mA) |
| 3 | CM-HP-EDR | DI8/DO6 | Digital module for sHP07 (DI 8 pts [TR Sink/Source], DO 6 pts [relay]) |
Module tùy chọn
Digital I/O
| No. | Model | Type | Specification |
|---|---|---|---|
| 1 | CM3-SP32EDO | DI-32 | DI 32 pts, DC 24V |
| 2 | CM3-SP32EOT | DO-32 | DO 32 pts. DC 24V TR (Sink) |
| 3 | CM3-SP32EOC | DO-32 | DO 32 pts. DC 24V TR (Source) |
| 4 | CM3-SP16EOR | DO-16 | DO 16 pts, Relay Output |
| 5 | CM3-SP32EDT | DI-16 / DO-16 | DI 16 pts, DO 16 pts, TR (Sink) |
Analog I/O & Temp. Measuring
| No. | Model | Type | Specification |
|---|---|---|---|
| 1 | CM3-SP04EAO | AI-4 | AI 4CH Current/Voltage |
| 2 | CM3-SP04EAA | AIO-4 | AI 2CH / AO 2CH Current Voltage |
| 3 | CM3-SP04EOAI | AO-4 | AI 4CH RTD |
| 4 | CM3-SP04EOAI | AI 4CH TC | |
| 5 | CM3-SP04EOAI | AI 4CH TC & RTD MUX | |
| 6 | CM3-SP04EOAI | AO-4 | AO 4CH Current Output |
| 7 | CM3-SP04EOAV | AO 4CH Voltage Output |
Module truyền thông
| No. | Model | Type | Specification |
|---|---|---|---|
| 1 | CM3-SP02ERS | Comm. | RS232C 1CH, RS422/485 1CH, MODBUS RTU Master |
| 2 | CM3-SP02ERR | RS232C 2CH. MODBUS RTU Master | |
| 3 | CM3-SP01EET | 10/100Mbps, UDP/TCP, TCP MODBUS Master |
Phụ kiện
| No. | Model | Type | Specification |
|---|---|---|---|
| 1 | CM0-TB32M | SP32MDT | Multi-Terminal Block |
| 3 | CM0-SCB15E | SP32EDO, SP32EOT | I/O 32 Connection Cable (1.5m) |
