Bo mạch kết nối 32 kênh vào ra số DI ICP DAS DN-DI-32DW CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Termination board for digital input with high EMS protection and removable fuses

THÔNG TIN SẢN PHẨM

Features

Introduction

The DN-DI-32DW is a termination board with EMS protection. It provides sink and source connections for comprehensive applications. Moreover, the DN-DI-32DW supports wet and dry contact to fulfill most applications. In additional, this board also offers each channel one COM pin, the benefit for users is that they need no more additional terminal block for extending COM. Furthermore, the DN-DI-32DW offers removable fuse protection for the field loops with local indication of fuse failure and overvoltage and transient protection.

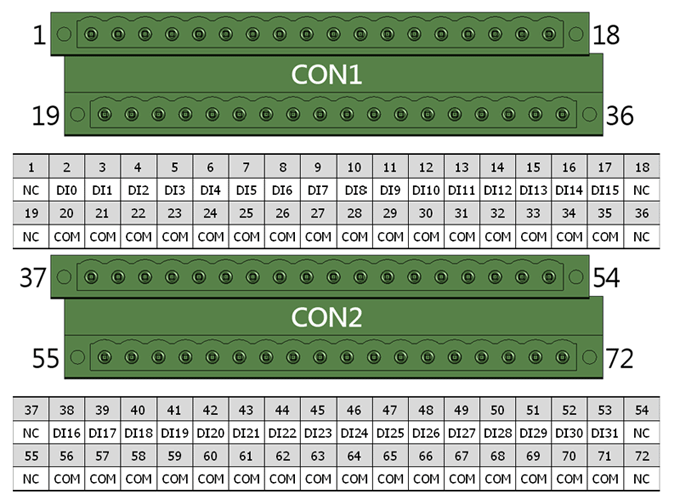

PIN Assignments

Wiring

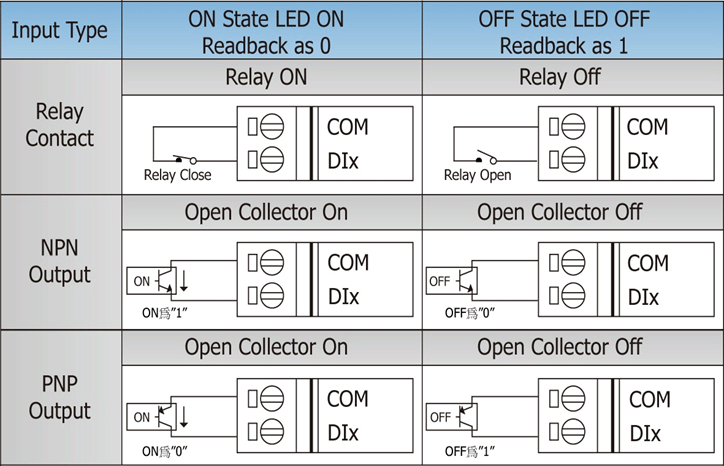

Dry contact (Current sourcing)

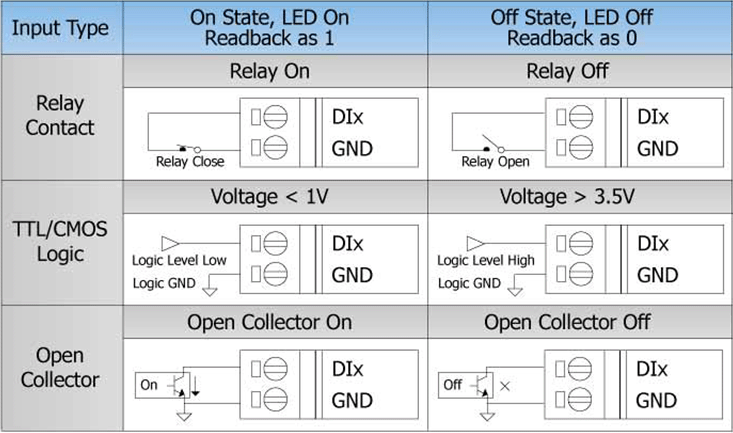

Dry contact (Current sinking)

Jumper Setting

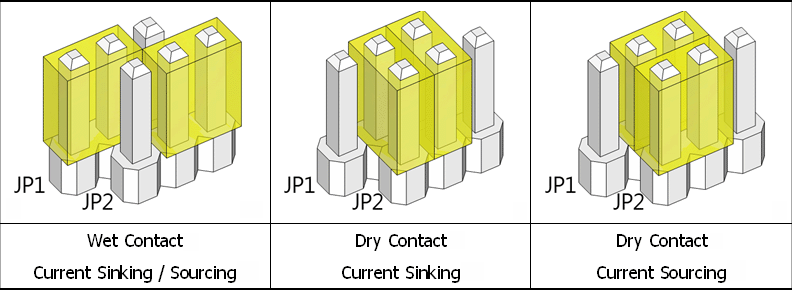

The DN-DI-32DW offers various wire connections to connect with field device to digital input module. It can be switched to different wire connection by changing jumper setting. The detail of jumper settings are described as following table.

NOTE: Please make sure the external power is attached as well when use dry contact wire connection.

Applications

Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote Diagnosis

Specifications

Digital Input
Channels	32
Type	Dry, Wet
Fuse Protection	320mA for each channel (With physical indication)

Mechanical
Dimensions (mm)	126.6 x 274.6 x 25.5
Installation	DIN-Rail & wall mounting

Environment
Operating Temperature	-25 ~ 75 °C
Humidity	5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DN-DI-32DW CR

Termination board for digital input with high EMS protection and removable fuses (RoHS)
