Module EtherNet/IP 16 kênh vào số DI ICP DAS EIP-2051 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

EtherNet/IP Module (Isolated 16-ch DI)

THÔNG TIN SẢN PHẨM

Features

• Transfer protocol: EtherNet/IP
• Powerful 32-bit MCU handles efficient network traffic
• 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
• Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
• Easy firmware update via Ethernet
• Removable terminal block connector
• LED display to indicate the inputs status
• Built-in I/O
‣DI/Counter: 16 Channels
• RoHS compliant

Introduction

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference. The EIP-2051 is a remote digital input module with 16 inputs. It is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2051 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

Specification

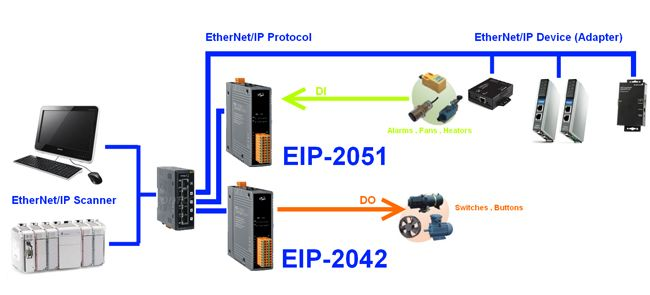

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote diagnosis
• Testing Equipment

Specification

Digital Input
Channels	16
Type	Dry Contact: Source, Wet Contact: Sink / Source
Wet Contact, ON Voltage Level	+10 V ~ +50 V
Wet Contact, OFF Voltage Level	+4V max.
Dry Contact, ON Voltage Level	Close to GND
Dry Contact, OFF Voltage Level	Open
Isolation	3000 VDC

Ethernet
Ports	10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection.

EtherNet/IP
Standard	IEEE 802.3 Ethernet/IP

Power
Consumption	Non-RevB: 1.6W ; RevB: 2.9W Max

Mechanical
Dimensions (mm)	110 x 90 x 33 (H x W x D)
Installation	DIN-Rail

Environmental
Operating Temperature	-25℃ ~ +75℃
Storage Temperature	-30℃ ~ +80℃

Download

Data sheet

Documents

Ordering information

EIP-2051 CR

EtherNet/IP Module (Isolated 16-ch DI) (RoHS)
