Module EtherNet/IP 6 kênh đầu vào số DI + 6 kênh đầu ra Relay ICP DAS EIP-2060 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

EtherNet/IP Module (Isolated 6-ch DI and 6-ch Relay Output)

THÔNG TIN SẢN PHẨM

Features

• Transfer protocol: EtherNet/IP
• Powerful 32-bit MCU handles efficient network traffic
• 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
• Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
• Easy firmware update via Ethernet
• Removable terminal block connector
• LED indicators to display the I/O status
• Built-in I/O
‣DI/Counter: 6 Channels
‣Relay: 6 Channels
• Power-On Value
• Safe Value
• RoHS compliant

Introduction

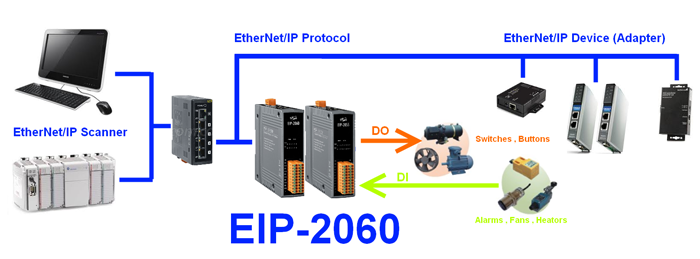

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference. The EIP-2060 is a remote digital I/O module with 6 DIs and 6 Relay. It is designed as an EtherNet/IP adapter. Users can obtain the I/O status as well as the connection status of the EIP-2060 by the LEDs. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

Specification

Digital Input
Channels	6
Type	Dry Contact: Source, Wet Contact: Sink / Source
Wet Contact, ON Voltage Level	+10 V ~ +50 V
Wet Contact, OFF Voltage Level	+4V max.
Dry Contact, ON Voltage Level	Close to GND
Dry Contact, OFF Voltage Level	Open
Isolation	3750 VDC

Digital Output
Channels	6
Type	Form A (SPST N.O.)
Electrical Endurance	100,000 times min.

Ethernet
Ports	10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection

EtherNet/IP
Standard	IEEE 802.3 Ethernet/IP

Power
Consumption	Non-RevB : 1.6W ; RevB : 3.3W Max

Mechanical
Dimensions (mm)	110 x 90 x 33 (H x W x D)

Environmental
Operating Temperature	-25℃ ~ +75℃
Storage Temperature	-30℃ ~ +80℃
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

EIP-2060 CR

EtherNet/IP Module (Isolated 6-ch DI and 6-ch Relay Output) (RoHS)
