EtherNet/IP Module (Isolated 8-ch DIFF / 16-ch SE Analog Input)

THÔNG TIN SẢN PHẨM

Features

Transfer protocol: EtherNet/IP
Powerful 32-bit MCU handles efficient network traffic
Easy firmware update via Ethernet
Analog Input
- Differential: 8 Channels
- Single ended: 16 Channels
2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring

Introduction

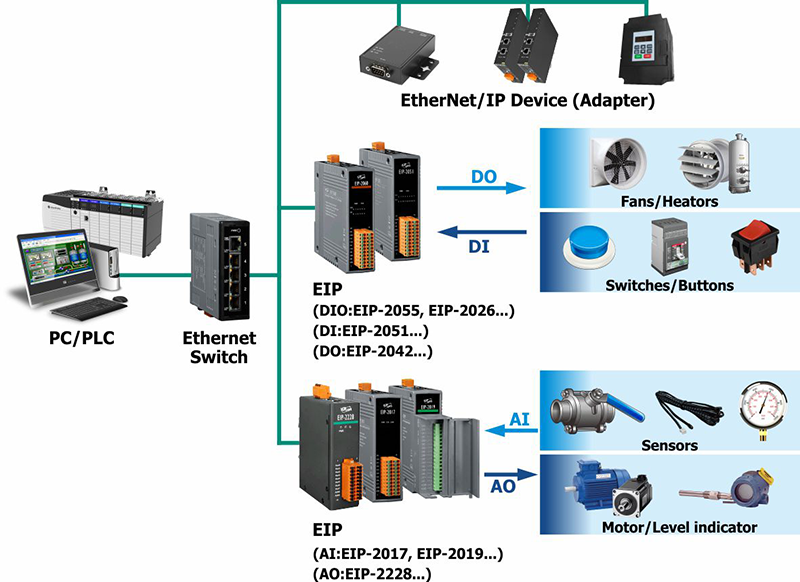

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference. The EIP-2217 is an 8-ch Differential and 16-ch Single-Ended AI module. The module provides a jumper to switch Differential and Single-Ended mode. It supports voltage and current input type. The accuracy of the measurement is smaller than 0.1% FSR. The Module is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2217 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

Applications

Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote diagnosis
Testing Equipment

Specifications

CPU Module
CPU	32-bit ARM
Watchdog Timer	Module, Communication (Programmable)

Isolation
2-way Isolation	Ethernet: 1500 VDC I/O: 3000 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point
Surge (IEC 61000-4-5)	±2 kV for Power Line

LED Indicators
Status	Run, Ethernet

Analog Input
Channels	8-ch differential or 16-ch single-ended
Type	Type Voltage: ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (DIP switch selectable - see Note 1)
Resolution	16-bit
Accuracy	Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR
Sampling Rate	Normal Mode: 20 Hz (total channels) Fast Mode: 200 Hz (total channels)
Input Impedance	Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended) Current: 137 Ω (Differential)
Common Voltage Protection	±200 VDC
Overvoltage Protection	120 VDC
Individual Channel Configuration	Yes
Open Wire Detection	For 4 to 20 mA only

Ethernet
Ports	10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection.
LAN bypass	Yes
Protocol	Ethernet/IP (Adapter)

Power
Reverse Polarity Protection	Yes
Consumption	3.3W
Powered from Terminal Block	+10 to +48 VDC

Mechanical
Casing	Metal
Dimensions (mm)	33 x 127 x 117 (W x L x H)
Installation	DIN-Rail mounting / Wall mounting (Optional ASO-0015)

Environment
Operating Temperature	-25 ~ +75 ℃
Storage Temperature	-40 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

Specification Memo

Note 1: Differential wiring can be used for both voltage input and current input. Single-ended wiring can only be used for voltage input.

Download

Datasheet

Documents

Ordering Information

EIP-2217 CR

EtherNet/IP Module (Isolated 8-ch DIFF / 16-ch SE Analog Input) (RoHS)
