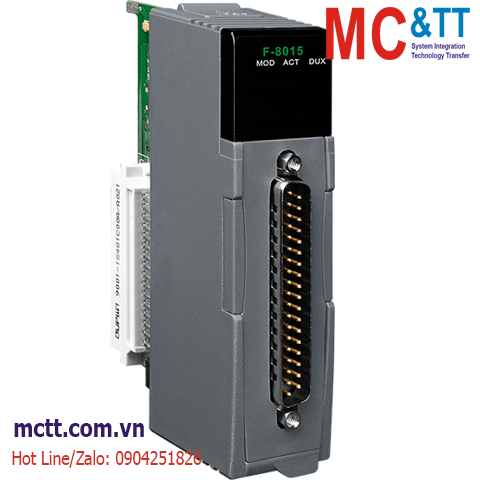

Module 8 kênh đầu vào RTD ICP DAS F-8015 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

8-ch Isolated RTD Input Redundant Module

THÔNG TIN SẢN PHẨM

Features

8 RTD input channels
User defined up/down scale
Open wire detection
RoHS compliance
3000 VDC isolation from input to backplane
3000 VDC isolation from input to frame ground
Redundancy
Fast redundant switching time (<100us)

Introduction

The F-8015 is a 16-bit, 8-channel RTD input module that features programmable input range on all channels. This module has ±0.05% accuracy for highly accurate application. Besides, the F-8015 provides 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages these channels, this module won’t affect other component in iDCS-8000 system.

Applications

Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote Diagnosis

Specifications

EMS Protection
EFT (IEC 61000-4-4)	Yes
ESD (IEC 61000-4-2)	Yes

LED Indicators
Status	1 x RUN, 1 x ACT, 1 x DUX and Communication (32 as channel 0~31 status)

Analog Input
Channels	8
Type	RTD
Sensor Type	Pt100, JPt100, Pt1000
Range	Pt100: -200 ~ +850 ℃ JPt100, Pt1000: -200 ~ +630 ℃
Resolution	16 bit
Accuracy	±0.05% FSR (±250 mΩ)
Sampling Rate	8 Samples/sec (Total)
Input Impedance	20 MΩ
Common Mode Rejection	106 dB
Normal Mode Rejection	90 dB
Overvoltage Protection	Yes
Zero Drift	±0.5 μV/°C
Span Drift	±20 ppm/°C
Isolation	3000 VDC

Analog Output
Open Wire Detection	Yes

I/O Expansion
I/O Type	DN-RTD-M

Power
Consumption	1 W

Mechanical
Dimensions (mm)	30 x 85 x 115
Weight	300 g

Environment
Operating Temperature	-25 °C ~ +75 °C
Humidity	5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

F-8015 CR

8-ch Isolated RTD Input Redundant Module (RoHS)
