Bộ chuyển đổi PROFINET sang Modbus TCP ICP DAS GW-7663 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PROFINET to Modbus TCP Gateway

THÔNG TIN SẢN PHẨM

Features

Protocol: PROFINET IO Device
PROFINET Conformance Class B and RT Class 1
Cyclic Time: 1ms (min)
Generic GSDML File Provided (Version 2.25)
Max length of input/output data is 512/512 Bytes
Support Modbus Master and Slave mode
4 kV Contact ESD protection for any terminal

Introduction

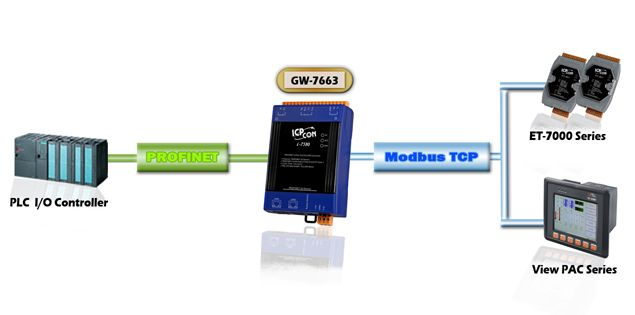

The GW-7663 specially designed for PROFINET IO device. It allows PROFINET controller to access Modbus TCP devices. These Modbus devices maybe a PLC, a sensor, ICPDAS I-8KE4-MCTP, ET-7000 series modules and so forth. We also provide a utility software for users to configure GW-7663. By using this module, users can put their Modbus devices into PROFINET network easily.

Applications

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…

Specifications

CPU Module
CPU	32-bit CPU Core
EEPROM	8 KB
Flash	4 MB
SRAM	32 MB
Watchdog Timer	CPU built-in

LED Indicators
Status	AP LED, BOOT LED, ERR LED

Ethernet
Services	ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging

PROFINET
Conformance Classes	Class B
Services	RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time	1 ms (min)
Protocol	PROFINET IO Device

Power
Consumption	3.4 W

Mechanical
Dimensions (mm)	42 x 76 x 110 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 ℃
Storage Temperature	-30 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

GW-7663 CR

PROFINET to Modbus TCP Gateway (RoHS)
