Bộ chuyển đổi PROFINET sang RS-232/422/485 ICP DAS I-7580 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PROFINET to RS-232/422/485 Converter

THÔNG TIN SẢN PHẨM

Features

Protocol: PROFINET IO Device
PROFINET Conformance Class B and RT Class 1
Cyclic Time: 1ms (min)
Generic GSDML File Provided (Version 2.25)
Max length of input/output data is 512/384 Bytes
4 kV Contact ESD protection for any terminal

Introduction

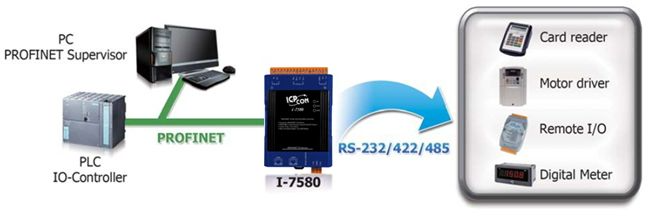

The I-7580 is a PROFINET IO device with RT functionality that supports RS-232, RS-422 and RS-485 serial interfaces. Users can choose one of these serial communication interfaces to apply. It is easy to allow users to take almost serial device to a PROFINET network including serial remote I/O devices, sensors, actuators, HMI, barcode readers and RFID, etc

Applications

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…

Specifications

CPU Module
CPU	32-bit CPU Core
EEPROM	8 KB
Flash	4 MB
SRAM	32 MB
Watchdog Timer	CPU built-in

LED Indicators
Status	AP LED, BOOT LED, ERR LED

COM Ports
Ports	RS-232/RS-422/RS-485 (can't be used simultaneously) 3-pin screwed terminal block (RxD, TxD, GND) 4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-) 2-pin screwed terminal block (DATA+, DATA-)
Baud Rate	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800
Parity	None, Even, Odd
Data Bit	7, 8
Stop Bit	1

Ethernet
Services	ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging

PROFINET
Conformance Classes	Class B
Services	RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time	1 ms (min)
Protocol	PROFINET IO Device

Power
Consumption	3.4 W

Mechanical
Dimensions (mm)	42 x 76 x 119 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 ℃
Storage Temperature	-30 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7580 CR

PROFINET to RS-232/422/485 Converter (RoHS)
