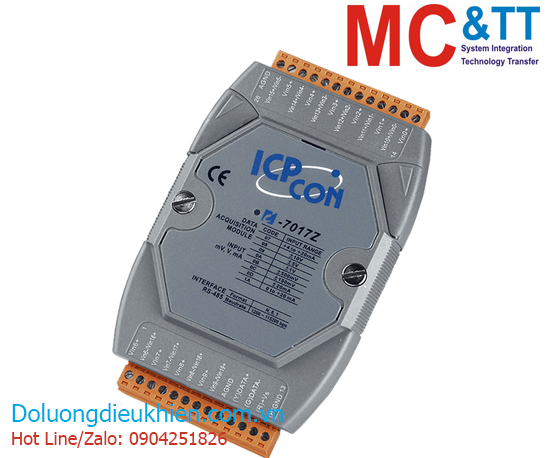

Module RS-485 DCON 10/20 kênh đầu vào tương tự AI ICP DAS I-7017Z-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

10/20-ch AI Module with High Voltage Protection

THÔNG TIN SẢN PHẨM

Features

• 10-channel Differential or 20-channel Single-ended inputs
• Jumper Selectable Voltage or Current Input
• 240 Vrms Overvoltage Protection
• Supports Fast and Normal Mode Sampling
• 4 kV ESD and EFT Protection
• 3000 VDC Intra-module Isolation
• Overcurrent Protection
• Individual Channel Configuration
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C

Introduction

The I-7017Z is an Analog Input module that includes 10 differential or 20 single-ended Analog Input channels. The module provides a programmable input range on all Analog Input channels. Each Analog Input channel can be configured for an individual input range, providing a high overvoltage protection of 240 Vrms and 50mA overcurrent protection at 110 VDC/VAC. Voltage and current input is jumper selectable. The sampling rate of the I-7017Z is adjustable can be set to either fast or normal mode. The module also features per-channel open wire detection for 4 ~ 20 mA input and provides 4 KV ESD protection as well as 3000 VDC intra-module isolation. The M-7017Z supports both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7017Z.

Specification

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal
Surge (IEC 61000-4-5)	±0.5 kV for Power Lin

LED Indicators
Status	1 x Power and Communication

Analog Input
Channels	10 Differential or 20 Single-ended (Software Selectable - see Note 1)
Type	Voltage Current
Range	Voltage: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V Current: ±20 mA , 0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable)
Resolution	16-bit
Accuracy	Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR
Sampling Rate	Normal Mode: 10 Hz Fast Mode: 60 Hz
Input Impedance	Voltage: 2 MΩ (Differential) Current: 125 Ω (Differential)
Common Voltage Protection	±200 VDC
Overvoltage Protection	240 Vrms
Overcurrent Protection	Yes, 50 mA at 110 VDC
Individual Channel Configuration	Yes

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	N, 8, 1
Protocol	DCON

Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	2.0 W

Mechanical
Dimensions (mm)	123 x 72 x 35 (W x L x H)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Odering information

I-7017Z-G CR

10/20-ch AI Module with High Voltage Protection using DCON Protocol (Gray Cover) (RoHS)
