Module RS-485 DCON 10 kênh đầu vào tương tự AI (Cặp nhiệt, Thermocouple) ICP DAS I-7018Z-G/S CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

10-ch Thermocouple Input Module

THÔNG TIN SẢN PHẨM

Features

• 10-channel Analog Input
• Temperature Output Consistency
• Stable Temperature Output in the Field
• Current, Voltage and Thermocouple Input
• Overvoltage Protection of up to 240 Vrms
• Individual Channel Configuration
• Open Thermocouple Detection
• 4 kV ESD Protection
• 3000 VDC Intra-module Isolation
• Dual Watchdog

Introduction

Introduction

The I-7018Z/M-7018Z is a 10-channel universal Analog Input module with an RS-485 interface that is especially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design. Besides the thermocouple inputs, the I-7018Z/M-7018Z also supports voltage and current input. The voltage input range can be from +/-15 mV to +/-2.5 V. Up to 10 different types of Analog Input can be connected to a single module. Overvoltage protection of up to 240 Vrms is provided. The module also features per-channel open wire detection for the thermocouple and +4 ~ +20 mA input channels. The M-7018Z provides additional support for both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7018Z.

Specification

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV to Power
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal
Surge (IEC 61000-4-5)	±0.5 kV for Power Line

LED Indicators
Status	1 x Power and Communication

Analog Input
Channels	10 Differential
Type	Voltage Current Thermocouple
Sensor Type	Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710
Temperature Output Consistency	Yes
Stable Temperature Output in the Field	Yes
Range	Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor)
Resolution	16-bit
Accuracy	±0.1% of FSR
Sampling Rate	10 Hz (Total)
Input Impedance	> 400 kΩ
Common Voltage Protection	±200 VDC
Overvoltage Protection	240 Vrms
Individual Channel Configuration	Yes
Open Wire Detection	Yes

COM Ports
Ports	1 x RS-485
Baud Rate	1200 to 115200 bps
Data Format	(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol	DCON

Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	1.0 W

Mechanical
Dimensions (mm)	I-7018Z: 116 x 73 x 35 (W x L x H) DB-1820: 65 x 78 x 22 (W x L x D)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Odering information

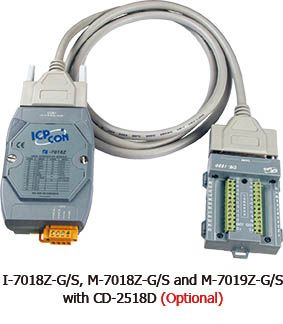

I-7018Z-G/S CR

10-ch Thermocouple Input Module using DCON Protocol (Gray Cover) (RoHS)

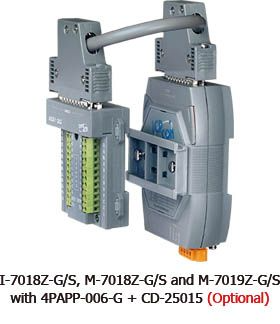

Includes DB-1820 Daughter Board and 4PAPP-006-G
