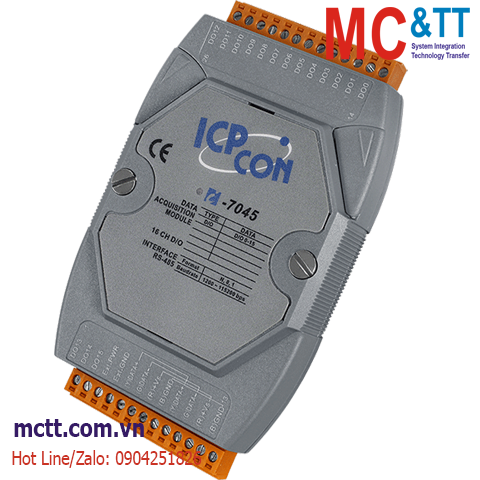

Module RS-485 DCON 16 kênh đầu ra số DO ICP DAS I-7045-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

16-ch Isolated (Source, PNP, 10~40 VDC) DO Module

THÔNG TIN SẢN PHẨM

Features

Source-type Digital Output with Overload Protection
Configurable Power-on Value and Safe Value Settings
Short Circuit Protection
Overload and Overvoltage Protection
Built-in Dual Watchdog

Introduction

All modules in the 7045 series offer 16 digital output channels, each of which features photocoupler isolation. The I-7045(D)/M-7045(D) supports sourcetype output, while the I-7045(D)-NPN/M-7045(D)-NPN supports sink-type, and both are equipped with short circuit protection. There are options to enable both power-on and safe values, and 16 LED indicators that can be used to monitor the status of the digital output channels. 4 kV ESD protection, 4 kV EFT protection, 3 kV surge protection for power input and 3750 VDC Intra-module isolation are standard. The M-7045(D)/M-7075(D)-NPN has the same hardware specifications as the I-7045(D)/I-7045(D)-NPN, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer	Module, Communication (Programmable)

Isolation
Intra-module Isolation	3750 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for the 16 DO channels and Power, ±2 kV for the RS-485 Port
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal ±8 kV Air for Random Point
Surge (IEC 61000-4-5)	±3 kV for Power Line

LED Indicators
Status	1 x Power and Communication

Digital Output
Channels	16
Type	Open Collector
Sink/Source (NPN/PNP)	Source
Load Voltage	+10 ~ +40 VDC
Load Current	650 mA/channel
Overvoltage Protection	47 VDC
Overload Protection	1.4 A
Short-circuit Protection	Yes
Power on Value	Programmable
Safe Value	Programmable

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1)
Protocol	DCON

Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	0.6 W

Mechanical
Dimensions (mm)	123 x 72 x 35 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7045-G CR

16-ch Isolated (Source, PNP, 10~40 VDC) DO Module using DCON Protocol (Gray Cover) (RoHS)
