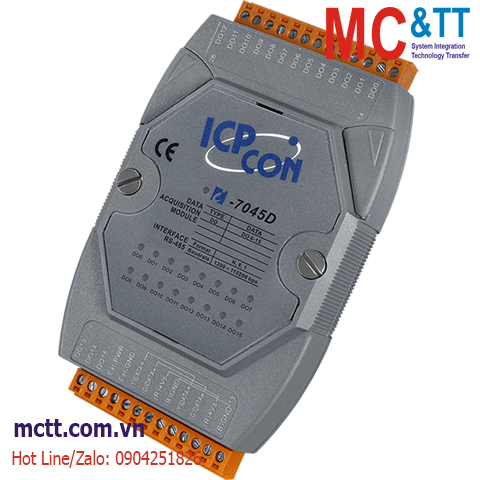

Module RS-485 DCON 16 kênh đầu ra số DO ICP DAS I-7045D-G CR

Features

  • Source-type Digital Output with Overload Protection
  • Configurable Power-on Value and Safe Value Settings
  • Short Circuit Protection
  • Overload and Overvoltage Protection
  • Built-in Dual Watchdog

Introduction

All modules in the 7045 series offer 16 digital output channels, each of which features photocoupler isolation. The I-7045(D)/M-7045(D) supports sourcetype output, while the I-7045(D)-NPN/M-7045(D)-NPN supports sink-type, and both are equipped with short circuit protection. There are options to enable both power-on and safe values, and 16 LED indicators that can be used to monitor the status of the digital output channels. 4 kV ESD protection, 4 kV EFT protection, 3 kV surge protection for power input and 3750 VDC Intra-module isolation are standard. The M-7045(D)/M-7075(D)-NPN has the same hardware specifications as the I-7045(D)/I-7045(D)-NPN, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Display
Type I/O LED Indicator
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for the 16 DO channels and Power,
±2 kV for the RS-485 Port
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±3 kV for Power Line
LED Indicators
Status 1 x Power and Communication
16 x Digital Output
Digital Output
Channels 16
Type Open Collector
Sink/Source (NPN/PNP) Source
Load Voltage +10 ~ +40 VDC
Load Current 650 mA/channel
Overvoltage Protection 47 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.5 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7045D-G     CR  16-ch Isolated (Source, PNP, 10~40 VDC) DO Module with LED Display using DCON Protocol (Gray Cover) (RoHS)
