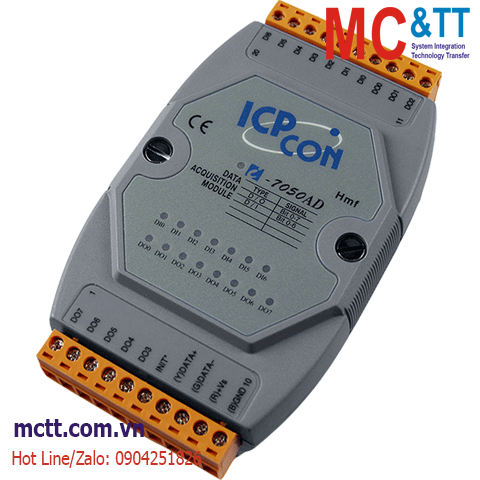

Module RS-485 DCON 7 kênh đầu vào số DI + 8 kênh đầu ra số DO ICP DAS I-7050AD-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

7-ch Non-isolated (Wet) DI and 8-ch Non-isolated (Source, PNP) DO Module with LED Display

Gọi +84 904251826 để được trợ giúp

Module RS-485 DCON 7 kênh đầu vào số DI + 8 kênh đầu ra số DO ICP DAS I-7050AD-G CR

Features

• 8 Digital Outputs and 7 Digital Inputs
• Open Collector Output
• Non-isolated for all Channels
• Digital Input Channels Can Be Used As 16-bit Counters
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C

Introduction

The I-7050 series of modules offers channels for digital input and 8 channels for digital output, each of which are non-isolated. The I-7050 supports sink-type output using an NPN open collector, and source-type input. All input channels are able to be used as 16-bit counters. There are also options to enable both power-on and safe values. The I-7050D has 15 LED indicators that can be used to monitor channel status. The M-7050 has the same hardware specifications as the I-7050, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.

Specification

CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)



LED Indicators
Status 1 x Power and Communication



Digital Input/Counter
Channels 7
Type Dry Contact, Sink
Wet Contact, Sink
Wet Contact, ON Voltage Level +4 ~ 30 VDC
Wet Contact, OFF Voltage Level +1 VDC Max.
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 100 KΩ



Digital Output
Channels 8
Type Open Collector
Sink/Source (NPN/PNP) Source
Load Voltage +3.5 ~ 30 VDC
Max. Load Current 50 mA/Channel
Power on Value Yes
Safe Value Yes



COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol DCON



Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 0.5 W



Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail



Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

I-7050AD-G     CR  7-ch Non-isolated DI (Wet) and 8-ch Non-isolated DO (Source, PNP) Module with LED Display using DCON Protocol (Gray Cover) (RoHS)
