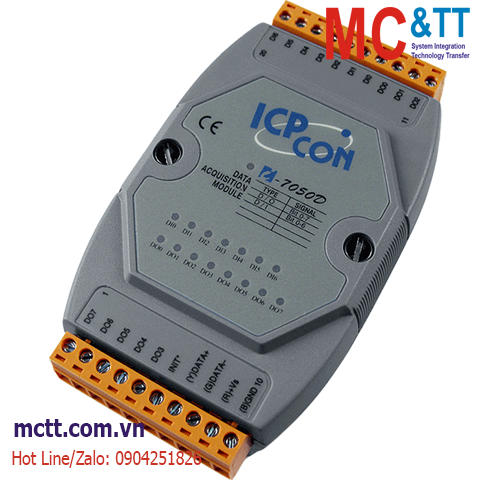

7-ch Non-isolated (Dry) DI and 8-ch Non-isolated (Sink, NPN) DO Module with LED Display

THÔNG TIN SẢN PHẨM

Features

• 8 Digital Outputs and 7 Digital Inputs
• Open Collector Output
• Non-isolated for all Channels
• Digital Input Channels Can Be Used As 16-bit Counters
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C

Introduction

The I-7050 series of modules offers channels for digital input and 8 channels for digital output, each of which are non-isolated. The I-7050 supports sink-type output using an NPN open collector, and source-type input. All input channels are able to be used as 16-bit counters. There are also options to enable both power-on and safe values. The I-7050D has 15 LED indicators that can be used to monitor channel status. The M-7050 has the same hardware specifications as the I-7050, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.

Specification

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Display
Type	I/O LED Indicator

LED Indicators
Status	1 x Power and Communication 7 x Digital Input 8 x Digital Output

Digital Input/Counter
Channels	7
Type	Dry Contact, Sink Wet Contact, Source
Dry Contact, ON Voltage Level	Open
Dry Contact, OFF Voltage Level	Close to GND
Dry Contact, Effective Distance	500 m Max.
Max. Counts	65535 (16-bit)
Frequency	100 Hz
Min. Pulse Width	5 ms
Input Impedance	100 KΩ

Digital Output
Channels	8
Type	Open Collector
Sink/Source (NPN/PNP)	Sink
Load Voltage	+3.5 ~ 30 VDC
Max. Load Current	30 mA/Channel
Power on Value	Yes
Safe Value	Yes

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol	DCON

Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	1.1 W

Mechanical
Dimensions (mm)	123 x 72 x 35 (W x L x H)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

I-7050D-G CR

7-ch Non-isolated DI (Dry) and 8-ch Non-isolated DO (Sink, NPN) Module with LED Display using DCON Protocol (Gray Cover) (RoHS)
