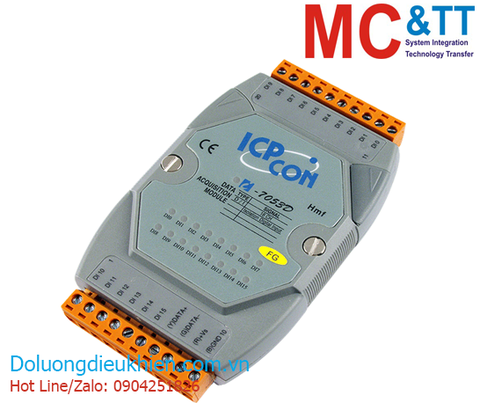

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule RS-485 DCON 16 kênh đầu vào số DI ICP DAS I-7053D-FG-G CR
Features
• 16 Source-type Digital Inputs
• Long Effective Distance
• Dry Contact Input
• Non-isolated for all Channels
• All Channels Can Be Used As 16-bit Counters
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C
Introduction
The I-7052 offers 6 fully independent channels and 2 common ground channels for digital input. The diffential inputs feature channel-to-isolation. In addition, you can choose either sink- or source-type input via wire connections. All channels are able to be used as 16-bit has 8 LED indicators for DI channel status monitoring. 4 kV ESD protection and 5000 Vrms intra-module isolation are standard. The M-7052 has the same hardware specifications as the I-7052, but provides additional support for the Modbus RTU protocol as well as the DCON protocol. The I-7053-FG features a long effective distance measurement for dry contact digital input of up to 500 meters. The I-7053-FG supports source-type input. All 16 channels are also able to be used as 16-bit counters, each of which are non-isolated. The I-7053D-FG has 16 LED indicators for channel status monitoring. The M-7053 has the same hardware specifications as the I-7053-FG, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Display | |
|---|---|
| Type | I/O LED Indicator |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x Digital Input |
| Digital Input/Counter | |
|---|---|
| Channels | 16 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| Dry Contact, ON Voltage Level | Open |
| Dry Contact, OFF Voltage Level | Close to GND |
| Dry Contact, Effective Distance | 500 m Max. |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Protocol | DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.9 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 123 x 72 x 35 (W x L x H) |
| Installation | DIN-Rail |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering information
| I-7053D-FG-G CR | 16-ch Non-isolated DI (Dry) Module with LED Display using DCON Protocol (Gray Cover) (RoHS) |
