8-ch Isolated (Dry, Wet) DI and 8-ch Isolated (Source, PNP, 10~40 VDC) DO Module

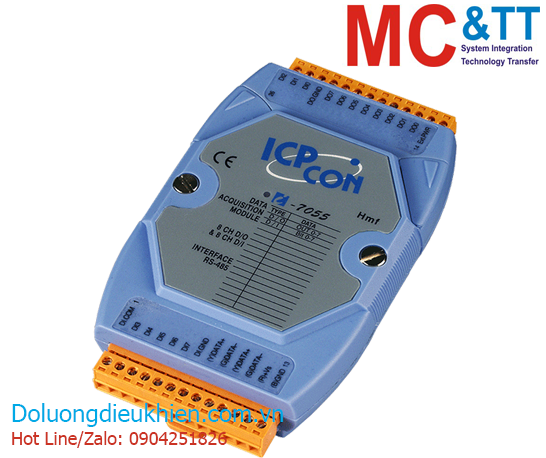

Module RS-485 DCON 8 kênh đầu vào số DI + 8 kênh đầu ra số DO ICP DAS I-7055-G CR
Features
• Source-type Digital Output Channels with Overload Protection
• All Digital Input Channels can be used as 16-bit Counters
• Short Circuit Protection
• 4 kV ESD Protection
• 3750 VDC Intra-module Isolation
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Wide Operating Temperature Range: -25 ~ +75°C
Introduction
The I-7055 offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters. The I-7055 supports source-type output with short circuit protection. There are options to enable both power-on and safe values. The I-7055D has 16 LED indicators that can be used to monitor the status of the digital input and digital output channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. The M-7055 has the same hardware specifications as the I-7055, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Specification
CPU Module | |
---|---|
Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
Isolation | |
---|---|
Intra-module Isolation | 3750 VDC |
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | ±4 kV for Power Line |
ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
Surge (IEC 61000-4-5) | ±3 kV for Power Line |
LED Indicators | |
---|---|
Status | 1 x Power and Communication |
Digital Input/Counter | |
---|---|
Channels | 8 |
Type | Dry Contact, Source Wet Contact, Sink/Source |
Wet Contact, ON Voltage Level | +10 ~ 50 VDC |
Wet Contact, OFF Voltage Level | +4 VDC Max. |
Dry Contact, ON Voltage Level | Close to GND |
Dry Contact, OFF Voltage Level | Open |
Dry Contact, Effective Distance | 500 m Max. |
Max. Counts | 65535 (16-bit) |
Frequency | 100 Hz |
Min. Pulse Width | 5 ms |
Input Impedance | 10 KΩ |
Overvoltage Protection | ±70 VDC |
Digital Output | |
---|---|
Channels | 8 |
Type | Open Source |
Sink/Source (NPN/PNP) | Source |
Load Voltage | +10 ~ 40 VDC |
Max. Load Current | 650 mA/Channel |
Overvoltage Protection | 47 VDC |
Overload Protection | 1.4 A (with short-circuit protection) |
Short-Circuit Protection | Yes |
Power on Value | Yes |
Safe Value | Yes |
COM Ports | |
---|---|
Ports | 1 x RS-485 |
Baud Rate | 1200 ~ 115200 bps |
Data Format | N, 8, 1 |
Protocol | DCON |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Input Range | +10 ~ +30 VDC |
Consumption | 0.8 W |
Mechanical | |
---|---|
Dimensions (mm) | 123 x 72 x 35 (W x L x H) |
Installation | DIN-Rail |
Environmental | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -40 ~ +85 °C |
Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering information
I-7055-G CR | 8-ch Isolated DI (Dry, Wet) and 8-ch Isolated DO (Source, PNP, 10~40 VDC) Module using DCON Protocol (Gray Cover) (RoHS) |
