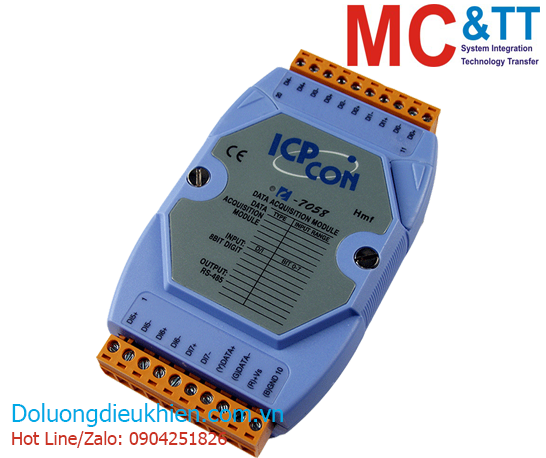

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule RS-485 DCON 8 kênh đầu vào số DI AC/DC ICP DAS I-7058-G CR
Features
• AC/DC Digital Input
• 8 Differential Input Channels
• All Channels Can be used as 16-bit Counters
• Channel-to-Channel Isolation
• ±4 kV ESD Protection
• 3750 VDC Isolation Voltage
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C
Introduction
The I-7058/I-7059 module offers 8 differential channels for AC/DC Digital Input, each of which features channel-to-channel Photocoupleisolation. All DI channels are also able to be used as 16-bit counters. The I-7058D/I-7059D module has 8 LED indicators fthat can be used to monitor the status of the DI channels. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. M-7058D/M-7059D module has the same hardware specifications as the I-7058/I-7059 module, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Digital Input/Counter | |
|---|---|
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| Wet Contact, ON Voltage Level | 80 ~ 250 VAC/VDC |
| Wet Contact, OFF Voltage Level | 30 VAC/VDC Max. |
| Max. Counts | 65535 (16-bit) |
| Min. Pulse Width | 5 ms |
| Input Impedance | 68 kΩ |
| Overvoltage Protection | 300 VAC/VDC Max. |
| Channel-to-Channel Isolation | Yes, ±2 kV |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Protocol | DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.3 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 123 x 72 x 35 (W x L x H) |
| Installation | DIN-Rail |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering information
| I-7058-G CR | 8-ch Isolated DI (Wet, 80~250 VAC/VDC) Module using DCON Protocol (Gray Cover) (RoHS) |
